TLR5 Antibody (85B152.5) [PE]

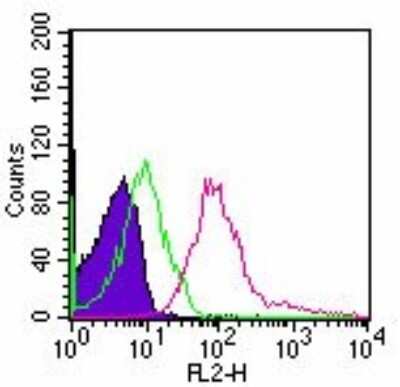

Flow Cytometry: TLR5 Antibody (85B152.5) [PE] [NBP2-24959] - Intracellular flow analysis of TLR5 in 10^6 human lymphocytes using 0.5 ugs of PE-conjugated antibody. The shaded histogram represents cells without antibody, more

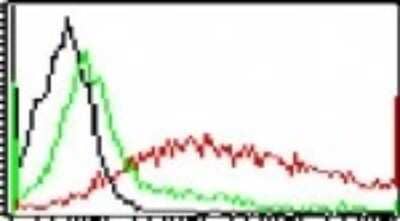

Flow Cytometry: TLR5 Antibody (85B152.5) [PE] [NBP2-24959] - Cell surface analysis of TLR5 in 10^6 RAW cells using 0.5 ugs of PE-conjugated antibody. The black histogram represents cells without antibody, green more

Product Details

Reactivity Hu, Mu, CaSpecies Glossary
Applications Flow, Flow-CS, Flow-IC

TLR5 Antibody (85B152.5) [PE] Summary

This antibody was developed against KLH-conjugated synthetic peptide corresponding to a portion of human TLR5. It will cross-react with mouse TLR5 (NP_003259).
Protein G purified
Innovator's Reward
Test in a species/application not listed above to receive a full credit towards a future purchase.


  • Flow Cytometry 1ul/1 million cells
  • Flow (Cell Surface)
  • Flow (Intracellular)
Application Notes
Reported use in Flow Cytometry (cell surface): see Wong et al, 2007 for details. Use in Flow cell surface and Flow intracellular reported in scientific literature (PMID 24779433) The observed molecular weight of the protein may vary from the listed predicted molecular weight due to post translational modifications, post translation cleavages, relative charges, and other experimental factors.
Theoretical MW
100 kDa.
Disclaimer note: The observed molecular weight of the protein may vary from the listed predicted molecular weight due to post translational modifications, post translation cleavages, relative charges, and other experimental factors.
Read Publications using
NBP2-24959 in the following applications:

Packaging, Storage & Formulations

Store at 4C in the dark.
0.05% Sodium Azide
Protein G purified

Alternate Names for TLR5 Antibody (85B152.5) [PE]

  • MGC126430
  • MGC126431
  • SLEB1FLJ10052
  • TIL-3
  • TIL3Toll/interleukin-1 receptor-like protein 3
  • TLR5
  • toll-like receptor 5


The Toll-like receptor (TLR) family in mammal comprises a family of transmembrane proteins characterized by multiple copies of leucine rich repeats in the extracellular domain and IL-1 receptor motif in the cytoplasmic domain. Like its counterparts in Drosophila, TLRs signal through adaptor molecules and could constitute an important and unrecognized component of innate immunity in humans. The TRL family is a phylogenetically conserved mediator of innate immunity that is essential for microbial recognition. TLRs characterized so far activate the MyD88/interleukin-1 receptor-associated kinase (IRAK) signaling pathway. Thirteen homologs of TLRs (TLR1-13) have been described. Toll-like receptor 5 (TLR5) expression is upregulated following exposure to bacteria or to the TLR5 agonist, flagellin. Gram-negative bacteria, stimulate monocyte/macrophage cells in a TLR5-specific, CD14-independent manner. The TLR5 receptor thus appears to be the principal means by which the innate immune system recognizes flagellated bacterial pathogens.


This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.
