CD31/PECAM-1 Antibody (TLD-3A12) [FITC]


There are currently no images for CD31/PECAM-1 Antibody (NB100-63703).

Every product we sell is backed by Novus' 100% Guarantee. If you have used this product, please submit your images and reviews to earn reward points.

Product Details

Reactivity RtSpecies Glossary
Applications Flow, IHC
0.1 mg/ml

CD31/PECAM-1 Antibody (TLD-3A12) [FITC] Summary

Activated, Lewis rat derived microglial cells
Membrane; single pass type I membrane protein.
Recognizes rat PECAM-1 (CD31), a 661 amino acid type 1 transmembrane protein expressed primarily on endothelial cells, platelets and leucocytes.
Protein G purified
Innovator's Reward
Test in a species/application not listed above to receive a full credit towards a future purchase.

Packaging, Storage & Formulations

Store at 4C short term. Aliquot and store at -20C long term. Avoid freeze-thaw cycles.
FITC (A=495, E=519)
PBS (pH 7.4) and 1.0% BSA
0.09% Sodium Azide
0.1 mg/ml
Protein G purified


Application Notes

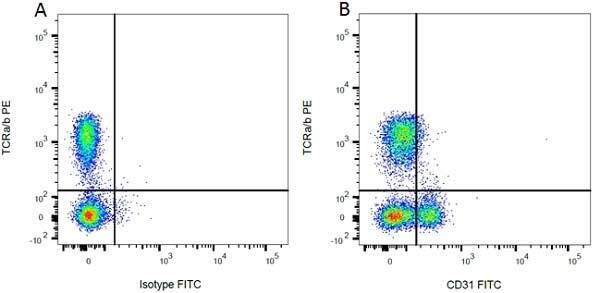

Clone TLD-3A12 has been shown to partially block the proliferative response of antigen-specific CD4+ T cells to antigen-presenting cells and relevant antigen. For Flow Cytometry: Use 10 ul of the suggested working dilution to label 10^6 cells in 100 ul. For IHC-P: The staining of endothelium may be enhanced on FFPE tissue by pre-treatment with 0.2M boric acid pH7.0, See Wilson et al. Immunocytochemistry/Immunofluorescence was reported in scientific literature.
Read Publications using NB100-63703.

Reactivity Notes

Reacts with: Rhesus Monkey, Pig

Alternate Names for CD31/PECAM-1 Antibody (TLD-3A12) [FITC]

  • adhesion molecule
  • CD31 antigen
  • CD31
  • CD31/EndoCAM
  • endoCAM
  • FLJ34100
  • FLJ58394
  • GPIIA'
  • PECA1
  • PECAM1
  • PECAM-1
  • PECAM-1, CD31/EndoCAM
  • platelet endothelial cell adhesion molecule
  • platelet/endothelial cell adhesion molecule


CD31, also known as platelet endothelial cell adhesion molecule 1 (PECAM1), is a type I integral membrane glycoprotein and a member of the immunoglobulin superfamily of cell surface receptors. It is constitutively expressed on the surface of endothelial cells and is specifically concentrated at the junction between them. Therefore, CD31 antibodies are commonly used as endothelial markers to measure angiogenesis in association with tumor recurrence. It is also weakly expressed on many peripheral lymphoid cells and platelets. Other studies have also indicated that CD31 and CD34 can be used as markers for myeloid progenitor cells and recognize different subsets of myeloid leukemia infiltrates (granular sarcomas). It is also weakly expressed on many peripheral lymphoid cells and platelets.


This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.
