PKM1 Antibody

Images


Western Blot: PKM1 Antibody [NBP2-14833] - Detection of PKM1 on HEK293T and U-87 cells. Lane 1: HEK293T cells (major isoform is PKM2, human). Lane 2: HEK293T cells with plasmid overexpressing mouse PKM1. Lane 3: HEK293T ...read more
Immunohistochemistry-Paraffin: PKM1 Antibody [NBP2-14833] - PKM1 antibody was tested in human breast cancer using DAB with hematoxylin counterstain.
Western Blot: PKM1 Antibody [NBP2-14833] - PKM1 antibody was tested in 1. human skeletal muscle 2. mouse skeletal muscle 3. human brain 4. mouse brain and 5. human heart cell lysate.
Simple Western: PKM1 Antibody [NBP2-14833] - Simple Western lane view shows a specific band for PKM1 in 0.5 mg/ml of Human Brain lysate. This experiment was performed under reducing conditions using the 12-230 kDa ...read more

Product Details

Summary
Reactivity Hu, MuSpecies Glossary
Applications WB, Simple Western, ICC/IF, IHC, IHC-P
Clonality
Polyclonal
Host
Rabbit
Conjugate
Unconjugated
Concentration
1.17 mg/ml

Order Details

PKM1 Antibody Summary

Immunogen
A synthetic peptide made to a C-terminal portion of the human PKM1 protein (between residues 350-450) [UniProt P14618-2].
Localization
Cytoplasm.
Specificity
This antibody is specific for the M1 isoform of PKM.
Isotype
IgG
Clonality
Polyclonal
Host
Rabbit
Gene
PKM
Purity
Immunogen affinity purified
Innovator's Reward
Test in a species/application not listed above to receive a full credit towards a future purchase.

Applications/Dilutions

Dilutions
  • Western Blot 0.5 ug/ml
  • Simple Western 1:400
  • Immunocytochemistry/Immunofluorescence
  • Immunohistochemistry 1:400
  • Immunohistochemistry-Paraffin 1:400
Application Notes
This PKM1 antibody is useful for IHC-paraffin embedded sections and Western blot. In Western blot a band is seen ~57 kDa in human and mouse skeletal muscle, brain and heart. In IHC-P, staining was observed in the cytoplasm of human breast cancer tissue. Prior to immunostaining paraffin tissues, antigen retrieval with sodium citrate buffer (pH 6.0) is recommended. Use in Immunocytochemistry/immunofluorescence reported in multiple pieces scientific literature.

In Simple Western only 10 - 15 uL of the recommended dilution is used per data point. Separated by Size-Wes, Sally Sue/Peggy Sue.
Positive Control
Skeletal Muscle Lysate (NB820-59253)
Skeletal Muscle Lysate (NB820-59668)
Reviewed Applications
Read 2 Reviews rated 5
using
NBP2-14833 in the following applications:

Publications
Read Publications using
NBP2-14833 in the following applications:

  • 2 publications
  • IHC
    1 publication
  • 2 publications
  • WB
    10 publications

Reactivity Notes

Human and mouse

Packaging, Storage & Formulations

Storage
Store at 4C short term. Aliquot and store at -20C long term. Avoid freeze-thaw cycles.
Buffer
PBS and 30% Glycerol
Preservative
0.05% Sodium Azide
Concentration
1.17 mg/ml
Purity
Immunogen affinity purified

Alternate Names for PKM1 Antibody

  • PK1
  • Pyruvate kinase isozyme M1
  • Pyruvate kinase isozymes M1
  • Pyruvate kinase M1

Background

Pyruvate kinases are glycolytic enzymes that transfer a phosphate group from phosphoenolpyruvate to ADP generating pyruvate and ATP. There are 4 isozymes of pyruvate kinase in mammals: L, R, M1 and M2. L type is major isozyme in the liver, R is found in red cells, M1 is the main form in muscle, heart and brain, and M2 is found in early fetal tissues as well as in most cancer cells. The M1 isoform differs from the M2 isoform due to a change in sequence between residues 389-433. In the presence of D-fructose 1,6-bisphosphate (FBP) the monomer reversibly forms the highly active tetrameric form. This tetramer is associated with the glycolytic enzyme complex and activates the pyruvate kinase activity. A nearly inactive dimeric form is associated with tumor cells.

Limitations

This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.

Customers Who Viewed This Item Also Viewed...

AF8519
Species: Hu, Mu, Rt
Applications: WB
NBP2-43853
Species: Hu, Mu, Rt, Bv
Applications: WB, ELISA, ICC/IF, IHC-Fr, IHC-P
NB100-2901
Species: Hu
Applications: WB, ELISA, Flow, IHC, IHC-P
NBP1-84168
Species: Hu
Applications: IHC, IHC-P
NBP2-48704
Species: Hu
Applications: WB, ICC/IF, IHC, IHC-P
NBP1-77266
Species: Hu, Mu, Rt
Applications: WB, ELISA, ICC/IF, IHC, IHC-P, IF
NBP2-29931
Species: Hu
Applications: WB, Flow, IHC-P
NBP2-03381
Species: Hu, Rt, Ca, Pm
Applications: WB, Flow, ICC/IF, IHC, IHC-P
MAB2014
Species: Hu
Applications: Flow, CyTOF-reported
NBP2-57614
Species: Hu
Applications: ICC/IF
NB100-74398
Species: Hu, Mu, Rt, Pm
Applications: WB, ICC/IF, IHC, IHC-P
NBP1-33137
Species: Hu
Applications: WB, ICC/IF, IHC, IHC-P
MAB1058
Species: Hu
Applications: Flow, Block, CyTOF-ready
NB100-128
Species: Hu, Mu, Rt
Applications: ChIP, GS, ICC/IF, IHC, IHC-P
NBP1-92290
Species: Hu
Applications: IHC, IHC-P
NBP1-90149
Species: Hu, Mu, Rt
Applications: WB, IHC, IHC-P
MAB4655
Species: Hu
Applications: Flow, CyTOF-ready
NBP1-06274
Species: Hu, Mu, Rt, Ch, Dr, Sh
Applications: WB, Simple Western, Flow, ICC/IF
NBP2-50419
Species: Hu
Applications: Flow, IP, CyTOF-ready
NBP2-14833
Species: Hu, Mu
Applications: WB, Simple Western, ICC/IF, IHC, IHC-P

Publications for PKM1 Antibody (NBP2-14833)(12)

We have publications tested in 2 confirmed species: Human, Mouse.

We have publications tested in 4 applications: ICC/IF, IHC, IHC-P, WB.


Filter By Application
ICC/IF
(2)
IHC
(1)
IHC-P
(2)
WB
(10)
All Applications
Filter By Species
Human
(8)
Mouse
(4)
All Species
Showing Publications 1 - 10 of 12. Show All 12 Publications.
Publications using NBP2-14833 Applications Species
Shanmugasundaram K, Nayak BK, Friedrichs WE et al. NOX4 functions as a mitochondrial energetic sensor coupling cancer metabolic reprogramming to drug resistance. Nat Commun. 2017 Oct 19 [PMID: 29051480] (WB, Human) WB Human
Minami K, Taniguchi K, Sugito N et al. MiR-145 negatively regulates Warburg effect by silencing KLF4 and PTBP1 in bladder cancer cells. Oncotarget. 2017 May 16 [PMID: 28380435] (WB, Human) WB Human
Takai T, Yoshikawa Y, Inamoto T et al. A Novel Combination RNAi toward Warburg Effect by Replacement with miR-145 and Silencing of PTBP1 Induces Apoptotic Cell Death in Bladder Cancer Cells Int J Mol Sci Jan 17 2017 [PMID: 28106737] (WB, Human) WB Human
Sugiyama T, Taniguchi K, Matsuhashi N et al. MiR-133b inhibits growth of human gastric cancer cells by silencing pyruvate kinase muscle-splicer polypyrimidine tract-binding protein 1. Cancer Sci. Dec 1 2016 [PMID: 27696637] (WB, Human) WB Human
J Casson R, P M Wood J, Han G et al. M-Type Pyruvate Kinase Isoforms and Lactate Dehydrogenase A in the Mammalian Retina: Metabolic Implications. Invest. Ophthalmol. Vis. Sci. 2016 Jan 01 [PMID: 26780311] (WB, IHC-P, Mouse) WB, IHC-P Mouse
Taniguchi K, Sugito N, Kumazaki M et al. Positive feedback of DDX6/c-Myc/PTB1 regulated by miR-124 contributes to maintenance of the Warburg effect in colon cancer cells Biochim. Biophys. Acta. 2015 Jul 02 [PMID: 26144048] (WB, Human)

Details:
PKM1 antibody was used for WB assay on lysates of human colon cancer cells (DLD-1 cells and WiDr cells ) transfected with miR-124 or siR-PTB1 (Fig. 3B and 3C). WB was also performed on lysates after the transfection of colon cancer cells with siR-c-Myc or siR-DDX6 (Fig. 4A qand 4B), and on DLD-1 cells /WiDr cells that were subjected to PKM1 and/or PKM2 knockdown using siRNAPKM1 and siRNAPKM2 (Fig. 5B and 5E).
WB Human
Taniguchi K, Sugito N, Kumazaki M et al. MicroRNA-124 inhibits cancer cell growth through PTB1/PKM1/PKM2 feedback cascade in colorectal cancer. Cancer Lett. 2015 Mar 24 [PMID: 25818238] (WB, ICC/IF, Human) WB, ICC/IF Human
Taniguchi K, Ito Y, Sugito N et al. Organ-specific PTB1-associated microRNAs determine expression of pyruvate kinase isoforms Sci Rep 2015 Feb 27 [PMID: 25721733] (WB, ICC/IF, IHC-P, Mouse, Human) WB, ICC/IF, IHC-P Mouse, Human
Shinohara H, Taniguchi K, Kumazaki M et al. Anti-cancer fatty-acid derivative induces autophagic cell death through modulation of PKM isoform expression profile mediated by bcr-abl in chronic myeloid leukemia Cancer Lett. 2015 Jan 30 [PMID: 25644089] (WB, Human)

Details:
PKM1 antibody used for WB on lysates of human leukemia cell lines K562 and KCL-22 cells which were subjected to AIC-47/a fatty-acid derivative treatment for 72?hours (Fig.?3B). WB also performed on the lysates of K562 and KCL-22 cells at 72?h after transfection of the cells with control RNA or siRNAs against c-Myc or PTB1 (Fig.?3C and 3D), and with control RNA or bcr-abl-specific siRNA /siR-bcr-abl (Fig.?4). PKM1 WB also performed on lysates of K562 cells transfected with control siRNA or siRNA-STAT3 (Figure S1A) and cells treated or not with Rapamycin (Figure S2).
WB Human
Fong MY, Zhou W, Liu L et al. Breast-cancer-secreted miR-122 reprograms glucose metabolism in premetastatic niche to promote metastasis Nat. Cell Biol. 2015 Feb 01 [PMID: 25621950] (IHC, Mouse)

Details:
Wang SE
IHC Mouse
Show All 12 Publications.

Reviews for PKM1 Antibody (NBP2-14833) (2) 52

Average Rating: 5
(Based on 2 reviews)
We have 2 reviews tested in 1 species: Human.
We have 2 reviews tested in 1 application: WB.

Reviews using NBP2-14833:
Filter by Applications
WB
(2)
All Applications
Filter by Species
Human
(2)
All Species
Images Ratings Applications Species Date Details

reviewed by:
Anonymous
WB Human 03/31/2016
View

Summary

ApplicationWestern Blot
Sample TestedHCT116 cell line lysate
SpeciesHuman
LotA-2

Blocking

Blocking Details5% skim milk in TBS

Primary Anitbody

Dilution Ratio1000 times, overnight incubation at 4 degrees C in 0.1% Tween-20 TBS 5% milk

Secondary Antibody

Secondary DescriptionGE Healthcare goat Anti-rabbit IgG HRP
Secondary Manufacturer Cat#NA934V
Secondary Concentration5,000 dilution

Details

Detection NotesDetection using autoradiography film, exposure 1 - 10 minutes, no positive controls.

Comments

CommentsThe PVDF membrane was washed 3 times with TBS-T, incubated further with the appropriate secondary antibody at room temperature for 1 hour, and then washed 3 times with TBS-T. The immunoblots were visualized by use of Ammersham ECL Plus Western Blotting Detection Reagents (GE Healthcare).

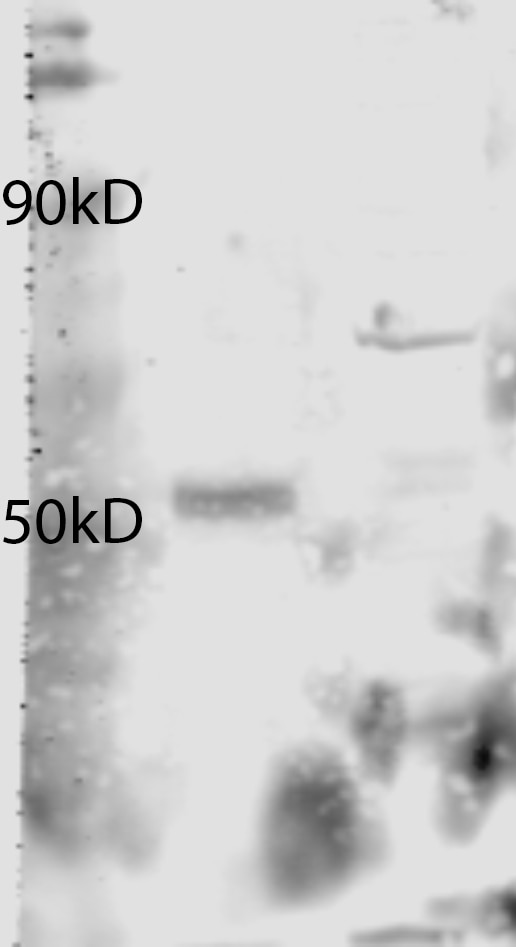

Western Blot PKM1 NBP2-14833
Enlarge
reviewed by:
Corey.
WB Human 12/10/2012
View

Summary

ApplicationWestern Blot
Sample TestedU-87 cells with PTB/A1/A2 shRNAs
SpeciesHuman
CommentsThe PKM1 antibody is specific to human and mouse PKM1. There is no cross-reactivity to PKM2. The background signal is very low:Lane 1: HEK293T cells (major isoform is PKM2, human)Lane 2: HEK293T cells with plasmid overexpressing mouse PKM1Lane 3: HEK293T cells with plasmid overexpressing mouse PKM2Lane 4: U-87 cells with control shRNA (major isoform is PKM2, human)Lane 5: U-87 cells with PTB/A1/A2 shRNAs (major isoform is PKM1, human)

Blocking

Blocking Details5% Milk in 10 mM Tris-Cl pH 8.0 with 150 mM NaCl and 0.1% Tween-20 incubate 1 hour at room tenperature

Primary Anitbody

Dilution Ratio1:1000 dilution in blocking buffer above incubate overnight at 4 degree Celsius

Secondary Antibody

Secondary DescriptionLI-COR anti-rabbit secondary antibody
Secondary Concentration(1:5000) incubate 1 hour at room temperature

Comments

CommentsThe PKM1 antibody is specific to human and mouse PKM1. There is no cross-reactivity to PKM2. The background signal is very low:Lane 1: HEK293T cells (major isoform is PKM2, human)Lane 2: HEK293T cells with plasmid overexpressing mouse PKM1Lane 3: HEK293T cells with plasmid overexpressing mouse PKM2Lane 4: U-87 cells with control shRNA (major isoform is PKM2, human)Lane 5: U-87 cells with PTB/A1/A2 shRNAs (major isoform is PKM1, human)

Product General Protocols

Video Protocols

WB Video Protocol
ICC/IF Video Protocol

FAQs for PKM1 Antibody (NBP2-14833). (Showing 1 - 1 of 1 FAQs).

  1. I just wanted to make sure the L/R didn't hit M1 and M2. I do not need to distinguish between L and R. So do you have an L/R specific monoclonal antibody for western blot?
    • We do have an antibody that is specific for PKM1, however it is a polyclonal. The catalog number is NBP2-14833.
