CD45 Antibody (SPM569 + SPM570) - Azide and BSA Free

Images

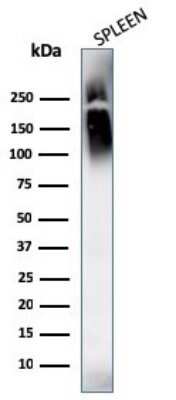

Western Blot: CD45 Antibody (SPM569 + SPM570) - Azide and BSA Free [NBP2-34430] - Western Blot Analysis of human spleen tissue lysates using CD45 Antibody (SPM569 + SPM570) [NBP2-34430]. Observed molecular weight ~150 ...read more
Immunohistochemistry-Paraffin: CD45 Antibody (SPM569 + SPM570) - Azide and BSA Free [NBP2-34430] - Formalin-fixed, paraffin-embedded human tonsil (20X) stained with CD45 Antibody (SPM569 + SPM570).
Immunohistochemistry-Paraffin: CD45 Antibody (SPM569 + SPM570) - Azide and BSA Free [NBP2-34430] - Formalin-fixed, paraffin-embedded human Lymphoma stained with CD45 Antibody (SPM569 + SPM570) [NBP2-34430].
Immunohistochemistry-Paraffin: CD45 Antibody (SPM569 + SPM570) - Azide and BSA Free [NBP2-34430] - Formalin-fixed, paraffin-embedded human tonsil (10X) stained with CD45 Antibody (SPM569 + SPM570) [NBP2-34430].

Product Details

Summary
Reactivity Hu, CaSpecies Glossary
Applications WB, Flow, ICC/IF, IHC, IHC-Fr, IHC-P, IP, CyTOF-ready
Clone
SPM569 + SPM570
Clonality
Monoclonal
Host
Mouse
Conjugate
Unconjugated
Format
Azide and BSA Free
Concentration
1.0 mg/ml

Order Details

CD45 Antibody (SPM569 + SPM570) - Azide and BSA Free Summary

Immunogen
This CD45 Antibody (SPM569 + SPM570) was prepared from Human B- and T-lymphoma cells.
Localization
Cell surface and cytoplasmic
Marker
Leucocyte Marker
Specificity
CD45 Antibody (SPM569 + SPM570) recognizes the CD45 leukocyte common antigen (LCA) family which is comprised of at least four isoforms of membrane glycoproteins (220, 205, 190, 180kDa) expressed on hematopoietic cell lines but absent on non-hematopoietic cell lines, normal and malignant non-hematopoietic tissues. The intracellular portions of these molecules have protein phosphatase activity and are involved in regulation of transmembrane signals. Antibody to CD45 is useful in differential diagnosis of lymphoid tumors from non-hematopoietic undifferentiated neoplasms. A positive result with this MAb is highly indicative of lymphoid or myeloid origin. Certain types of lymphoid neoplasms may lack CD45 (Hodgkin lymphoma, some T-cell lymphomas, and some leukemias) so its absence does not rule out a hematolymphoid tumor. This antibody is expressed almost exclusively by cells of hematopoietic lineage and is present in most benign and malignant lymphocytes as well as plasma cell precursors.
Isotype
IgG1 Kappa
Clonality
Monoclonal
Host
Mouse
Gene
PTPRC
Purity
Protein A purified
Innovator's Reward
Test in a species/application not listed above to receive a full credit towards a future purchase.

Applications/Dilutions

Dilutions
  • Western Blot 0.5-1.0ug/ml
  • Flow Cytometry 0.5-1ug/million cells
  • Immunocytochemistry/Immunofluorescence 0.5-1ug/ml
  • Immunohistochemistry -frozen 0.5-1.0ug/ml
  • Immunohistochemistry-Frozen 0.5-1.0ug/ml
  • Immunohistochemistry-Paraffin 0.5-1.0ug/ml
  • Immunoprecipitation 0.5-1ug/500ug
  • CyTOF-ready
Application Notes
Immunohistochemistry (Staining of paraffin tissues requires boiling tissue sections in 10mM citrate buffer, pH 6.0, for 10-20 min followed by cooling at RT for 20 minutes)
Theoretical MW
147 kDa.
Disclaimer note: The observed molecular weight of the protein may vary from the listed predicted molecular weight due to post translational modifications, post translation cleavages, relative charges, and other experimental factors.

Packaging, Storage & Formulations

Storage
Store at 4C short term. Aliquot and store at -20C long term. Avoid freeze-thaw cycles.
Buffer
10 mM PBS
Preservative
No Preservative
Concentration
1.0 mg/ml
Purity
Protein A purified

Alternate Names for CD45 Antibody (SPM569 + SPM570) - Azide and BSA Free

  • B220
  • CD_antigen: CD45
  • CD45 antigen
  • CD45
  • CD45R
  • EC 3.1.3.48
  • EC:3.1.3.48
  • GP180
  • LCA
  • L-CA
  • Leukocyte common antigen
  • LY5
  • protein tyrosine phosphatase, receptor type, c polypeptide
  • PTPRC
  • receptor-type tyrosine-protein phosphatase C
  • T200 Glycoprotein
  • T200 leukocyte common antigen
  • T200

Background

CD45, also known as leukocyte common antigen (LCA), T200, or Ly5, is a member C of the class 1 receptor-like protein tyrosine phosphatase (PTPRC) family (1, 2). It is a transmembrane glycoprotein which, due to alternative splicing, has a multiple isoforms with a theoretical molecular weight ranging from 180 - 220 kDa (1, 3-5). Human CD45 is synthesized as a 1281 amino acid sequence consisting of an alternatively spliced extracellular receptor-like region, a cysteine-rich domain, fibronectin-like III repeats, a transmembrane segment, and a cytoplasmic region with tandem protein tyrosine phosphatase (PTP) domains: the membrane proximal domain (D1) and the membrane distal domain (D2) (3, 5). CD45 is expressed on all nucleated hematopoietic cells and their precursors, except mature red blood cells, and is one of the most abundantly-expressed cell-surface glycoproteins, comprising approximately 10% of surface proteins in lymphocytes (3). Functionally, CD45 is essential for development and activation of T-cells and B-cells (1-5). More specifically, CD45 positively regulates antigen receptor signaling and Src-family member kinase activity (1, 3). There are many ways to regulate CD45 phosphatase activity including ligand binding, dimerization, protein interactions, cellular localization, and covalent modifications (3, 6). Ligands for CD45 include pUL11, a transmembrane protein of the cytomegalovirus RL11 (CMV RL11) family, and placental protein 14 (PP14), both of which exclusively bind CD45, and various lectins including CD22, galectin-1, galectin-3, macrophage mannose receptor (MR), and macrophage galactose-type lectin (MGL) (6).

Given its role in immune cell development and activation, CD45 has also been linked to a variety of diseases. The importance of CD45 in immunity has been revealed in human and mouse studies where CD45-deficiency leads to a severe-combined immunodeficiency (SCID) phenotype (2, 3, 6). A CD45-knockout mice study revealed inhibited thymocyte production and poor B-cell response, whereas CD45 activation in mice causes lymphoproliferation and autoantibody production (3). CD45 variants have been associated with altered immune function and autoimmune disorders including multiple sclerosis, systemic lupus erythematosus (SLE), and rheumatoid arthritis (6). Furthermore, altered CD45 expression has been implicated in oncological conditions including chronic lymphatic leukemia, acute lymphatic leukemia, Hodgkin lymphoma, multiple myeloma, and diffuse large B-cell lymphoma (6). Considering its role in autoimmune disorders, immunodeficiency and cancer, CD45 is an ideal therapeutic target (3, 6). The main approaches to control CD45 function is through either selective inhibitors or anti-CD45 antibodies (3).

Alternative names for CD45 includes B220, CD antigen: CD45, CD45 antigen, CD45R, EC 3.1.3.48, GP180, LCA, Leukocyte common antigen, LY5, protein tyrosine phosphatase receptor type c polypeptide, PTPRC, receptor-type tyrosine-protein phosphatase C, T200 Glycoprotein, and T200.

References

1. Trowbridge, I. S., & Thomas, M. L. (1994). CD45: an emerging role as a protein tyrosine phosphatase required for lymphocyte activation and development. Annual review of immunology. https://doi.org/10.1146/annurev.iy.12.040194.000505

2. Andersen, J. N., Jansen, P. G., Echwald, S. M., Mortensen, O. H., Fukada, T., Del Vecchio, R., Tonks, N. K., & Moller, N. P. (2004). A genomic perspective on protein tyrosine phosphatases: gene structure, pseudogenes, and genetic disease linkage. FASEB journal : official publication of the Federation of American Societies for Experimental Biology.

3. Hermiston, M. L., Xu, Z., & Weiss, A. (2003). CD45: a critical regulator of signaling thresholds in immune cells. Annual review of immunology. https://doi.org/10.1146/annurev.immunol.21.120601.140946

4. Tonks, N. K., Diltz, C. D., & Fischer, E. H. (1990). CD45, an integral membrane protein tyrosine phosphatase. Characterization of enzyme activity. The Journal of biological chemistry.

5. Nam, H. J., Poy, F., Saito, H., & Frederick, C. A. (2005). Structural basis for the function and regulation of the receptor protein tyrosine phosphatase CD45. The Journal of experimental medicine. https://doi.org/10.1084/jem.20041890

6. Rheinlander, A., Schraven, B., & Bommhardt, U. (2018). CD45 in human physiology and clinical medicine. Immunology letters. https://doi.org/10.1016/j.imlet.2018.01.009

Limitations

This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.

Customers Who Viewed This Item Also Viewed...

NBP2-79843
Species: Hu
Applications: WB, ELISA, Flow, ICC/IF, IHC, IHC-P, PA, CyTOF-ready
NB100-524
Species: Hu, Mu
Applications: WB, Flow, ICC/IF, IHC, IHC-Fr, IHC-P, IP, Flow-IC
NBP1-19371
Species: Hu, Mu, Rt, Ca, Rb
Applications: WB, Simple Western, Flow, ICC/IF, IHC, IHC-Fr, IHC-P
NB600-1071
Species: Mu, Rt
Applications: WB, ELISA, Flow, ICC/IF, IHC, IHC-Fr, IHC-P, IP
NBP1-49045
Species: Mu, Rt
Applications: Flow, ICC/IF, IHC, IHC-Fr, IHC-P, IP, Cell Depl, CyTOF-ready, InhibTFunc
NBP2-44743
Species: Hu, Pm, Pm, Bv(-), Ca(-), Po(-), Rt(-)
Applications: WB, Flow, ICC/IF, IHC, IHC-P, IF
NBP1-85599
Species: Hu, Mu
Applications: WB, IHC, IHC-P
NB110-89474
Species: Hu, Mu, Rt, Bv, Ce, ChHa, Pm, RM
Applications: WB, Simple Western, Flow, ICC/IF, IHC, IHC-Fr, IHC-P, ISH, Dual ISH-IHC, Single-Cell Western
NBP1-47386
Species: Hu, Mu, Rb(-)
Applications: WB, ELISA, Flow, ICC/IF, IHC, IHC-P, Flow-IC
7270-IL/CF
Species: Hu
NBP2-25196
Species: Hu, Mu
Applications: WB, Flow, ICC/IF, In vitro, CyTOF-ready
NBP2-93743
Species: Hu, Mu, Rt
Applications: WB, ICC/IF, IHC
NBP2-36561
Species: Hu, Mu
Applications: WB, ELISA, Flow, ICC/IF, IHC, IHC-Fr, IP, B/N

Publications for CD45 Antibody (NBP2-34430) (0)

There are no publications for CD45 Antibody (NBP2-34430).
By submitting your publication information earn gift cards and discounts for future purchases.

Reviews for CD45 Antibody (NBP2-34430) (0)

There are no reviews for CD45 Antibody (NBP2-34430). By submitting a review you will receive an Amazon e-Gift Card or Novus Product Discount.
  • Review with no image -- $10/€7/£6/$10 CAD/¥70 Yuan/¥1110 Yen
  • Review with an image -- $25/€18/£15/$25 CAD/¥150 Yuan/¥2500 Yen

Product General Protocols

Video Protocols

WB Video Protocol
ICC/IF Video Protocol

FAQs for CD45 Antibody (NBP2-34430). (Showing 1 - 4 of 4 FAQ).

  1. We would like to order a CD45 antibody to stain immune cells that were isolated from a ligated sciatic nerve of mice with double immunofluorescence (using PFA-fixed tissue on slides). Which of the following rat monoclonal CD45 antibodies would you recommend: 30-F11, IBL-3/16 or 5C16?
    • I would recommend clone 30-F11. As clone IBL-3/16 has not yet been validated for IHC-P application, we would not be able to guarantee its workability on PFA-fixed tissue. Although both other clones i.e. 30-F11 and 5C16, would be good for your samples, CD45 30-F11 # NB100-77417 is a well known clone that offers more flexibility around protocol because of availability of its conjugated forms. It would be advantageous to use a conjugated primary as you are planning for double-immunostaining procedure.
  2. For use in Western Blot with CD45 antibodies, what molecular weight of the band should I expect to see?
    • The theoretical molecular weight for most of our CD45 antibodies is 147 kDa based off the first isoform. Any variation on 147 is due to the immunogen being from a different species and the protein being a slightly different size. CD45 is a family of single chain transmembraneous glycoproteins consisting of at least four isoforms (220, 205, 190, 180 kDa) which share a common large intracellular domain. Their extracellular domains are heavily glycosylated.
  3. If this product is used in an application or species as a part of a customer review, will that validate this product in the application/species?
    • If any of our primary antibodes are used in an untested application or species and it is shown to work through images from customer reviews or through publications, this validates the application/species for this product, allowing the tested application/species to fall under our 100% guarantee. Please check out our Innovator's Reward Program if you decide to test a primary antibody with a species or application that is not currently listed. Please note that the Innovator's Reward Program only applies to our primary antibodies.
  4. Is CD45 a good target for use in Neurodegeneration studies?
    • Yes, here are the approved research areas we have listed for our CD45 products: Adaptive Immunity, Cell Biology, Cellular Markers, Cytokine Research, Glia Markers, Hematopoietic Stem Cell Markers, Immunology, Innate Immunity, Mast Cell Markers, Mesenchymal Stem Cell Markers, Microglia Markers, Myeloid Cell Markers, Myeloid-derived Suppressor, Neurodegeneration, Neuroscience, Signal Transduction, Stem Cell Markers, Growth and Development.
