Recombinant Human VEGF 165 Protein, CF


1 μg/lane of Recombinant Human VEGF165 was resolved by SDS-PAGE with silver staining, under reducing (R) and non-reducing (NR) conditions, showing major bands at 20-22 kDa and 39-42 kDa, respectively. Multiple bands in more

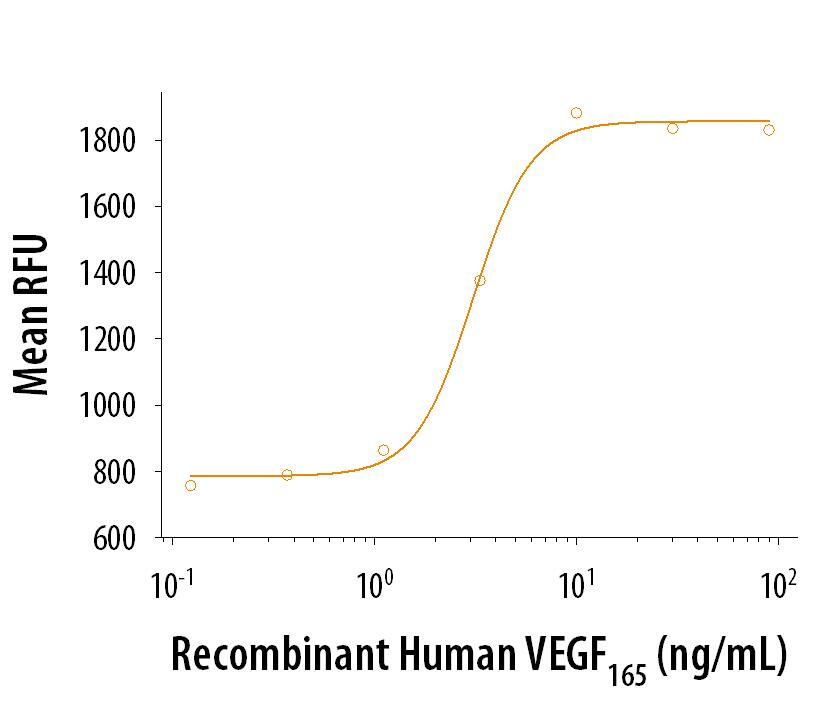

Recombinant Human VEGF165 (Catalog # 293-VE/CF) stimulates proliferation in HUVEC human umbilical vein endothelial cells. The ED50 is 1-6 ng/mL.

Product Details

Reactivity HuSpecies Glossary
Applications Bioactivity

Order Details

Recombinant Human VEGF 165 Protein, CF Summary

Details of Functionality
Measured in a cell proliferation assay using HUVEC human umbilical vein endothelial cells. Conn, G. et al. (1990) Proc. Natl. Acad. Sci. USA 87:1323. The ED50 for this effect is 1-6 ng/mL.
The specific activity of recombinant human VEGF165 is approximately 1.7 x 103 U/μg, which is calibrated against recombinant human VEGF165 WHO Standard (NIBSC code: 02/286).
Spodoptera frugiperda, Sf 21 (baculovirus)-derived human VEGF protein
Accession #
N-terminal Sequence
Structure / Form
Disulfide-linked homodimer
Protein/Peptide Type
Recombinant Proteins
>97%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.
Endotoxin Note
<0.01 EU per 1 μg of the protein by the LAL method.


Theoretical MW
19.2 kDa (monomer).
Disclaimer note: The observed molecular weight of the protein may vary from the listed predicted molecular weight due to post translational modifications, post translation cleavages, relative charges, and other experimental factors.
20-22 kDa, reducing conditions
39-42 kDa, non-reducing conditions
Read Publications using
293-VE/CF in the following applications:

Packaging, Storage & Formulations

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 3 months, -20 to -70 °C under sterile conditions after reconstitution.
Lyophilized from a 0.2 μm filtered solution in Acetonitrile and TFA with trehalose.
>97%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.
Reconstitution Instructions
Reconstitute at 100 μg/mL in sterile PBS. Alternatively, reconstitute at 500 μg/mL in sterile 4 mM HCl.


This product is produced by and ships from R&D Systems, Inc., a Bio-Techne brand.

Alternate Names for Recombinant Human VEGF 165 Protein, CF

  • MVCD1
  • VAS
  • vascular endothelial growth factor A
  • Vascular permeability factor
  • Vasculotropin
  • VEGF
  • VEGF-A
  • VEGFMGC70609
  • VPF
  • VPFvascular endothelial growth factor


Vascular endothelial growth factor (VEGF or VEGF-A), also known as vascular permeability factor (VPF), is a potent mediator of both angiogenesis and vasculogenesis in the fetus and adult (1-3). It is a member of the PDGF family that is characterized by the presence of eight conserved cysteine residues and a cystine knot structure (4). Humans express alternately spliced isoforms of 121, 145, 165, 183, 189, and 206 amino acids (aa) in length (4). VEGF165 appears to be the most abundant and potent isoform, followed by VEGF121 and VEGF189 (3, 4). Isoforms other than VEGF121 contain basic heparin-binding regions and are not freely diffusible (4). Human VEGF165 shares 88% aa sequence identity with corresponding regions of mouse and rat, 96% with porcine, 95% with canine, and 93% with feline, equine and bovine VEGF, respectively. VEGF binds the type I transmembrane receptor tyrosine kinases VEGF R1 (also called Flt-1) and VEGF R2 (Flk-1/KDR) on endothelial cells (4). Although VEGF affinity is highest for binding to VEGF R1, VEGF R2 appears to be the primary mediator of VEGF angiogenic activity (3, 4). VEGF165 binds the semaphorin receptor, Neuropilin-1 and promotes complex formation with VEGF R2 (5). VEGF is required during embryogenesis to regulate the proliferation, migration, and survival of endothelial cells (3, 4). In adults, VEGF functions mainly in wound healing and the female reproductive cycle (3). Pathologically, it is involved in tumor angiogenesis and vascular leakage (6, 7). Circulating VEGF levels correlate with disease activity in autoimmune diseases such as rheumatoid arthritis, multiple sclerosis and systemic lupus erythematosus (8). VEGF is induced by hypoxia and cytokines such as IL-1, IL-6, IL-8, oncostatin M and TNF-alpha (3, 4, 9).

  1. Leung, D.W. et al. (1989) Science 246:1306.
  2. Keck, P.J. et al. (1989) Science 246:1309.
  3. Byrne, A.M. et al. (2005) J. Cell. Mol. Med. 9:777.
  4. Robinson, C.J. and S.E. Stringer (2001) J. Cell. Sci. 114:853.
  5. Pan, Q. et al. (2007) J. Biol. Chem. 282:24049.
  6. Weis, S.M. and D.A. Cheresh (2005) Nature 437:497.
  7. Thurston, G. (2002) J. Anat. 200:575.
  8. Carvalho, J.F. et al. (2007) J. Clin. Immunol. 27:246.
  9. Angelo, L.S. and R. Kurzrock (2007) Clin. Cancer Res. 13:2825.
