CD45 Antibody (2B11) [mFluor Violet 610 SE]

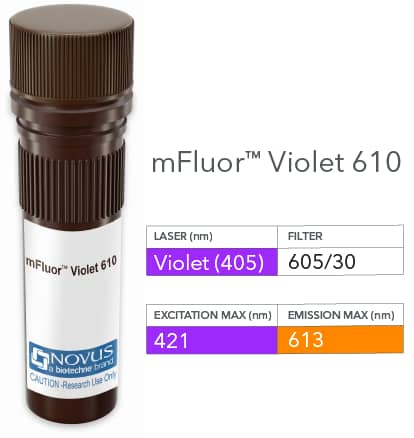

CD45 Antibody (2B11) [mFluor Violet 610 SE] [NBP2-34527MFV610] - Vial of mFluor Violet 610 conjugated antibody. mFluor Violet 610 is optimally excited at 421 nm by the Violet laser (405 nm) and has an emission maximum of 613 nm.

• Reactivity: Hu
• Applications: Flow, ICC/IF, IHC, CyTOF-ready
• Clone: 2B11
• Clonality: Monoclonal
• Host: Mouse
• Conjugate: mFluor Violet 610 SE

CD45 Antibody (2B11) [mFluor Violet 610 SE] Summary

• Additional Information: Clone 2B11 was used by HLDA to establish CD designation.
• Immunogen: Isolated neoplastic cells from T cell lymphoma
• Specificity: CD45R, also designated CD45 and PTPRC, has been identified as a transmembrane glycoprotein, broadly expressed among hematopoietic cells. Multiple isoforms of CD45R are distributed throughout the immune system according to cell type. These isoforms arise because of alternative splicing of exons 4, 5, and 6. The corresponding protein domains are characterized by the binding of monoclonal antibodies specific for CD45RA (exon 4), CD45RB (exon 5), CD45RC (exon 6) and CD45RO (exons 4 to 6 spliced out). The variation in these isoforms is localized to the extracellular domain of CD45R, while the intracellular domain is conserved. CD45R functions as a phosphor-tyrosine phosphatase. Antibody to CD45 is useful in differential diagnosis of lymphoid tumors from non-hematopoietic undifferentiated neoplasms.
• Isotype: IgG1 Kappa
• Clonality: Monoclonal
• Host: Mouse
• Gene: PTPRC
• Purity: Protein A or G purified

Applications/Dilutions

• Dilutions:
  • CyTOF-ready
  • Flow Cytometry
  • Immunocytochemistry/ Immunofluorescence
  • Immunohistochemistry
  • Immunohistochemistry-Paraffin
• Application Notes: Optimal dilution of this antibody should be experimentally determined.

Packaging, Storage & Formulations

• Storage: Store at 4C in the dark.
• Buffer: 50mM Sodium Borate
• Preservative: 0.05% Sodium Azide
• Purity: Protein A or G purified

Notes

mFluor(TM) is a trademark of AAT Bioquest, Inc. This conjugate is made on demand. Actual recovery may vary from the stated volume of this product. The volume will be greater than or equal to the unit size stated on the datasheet.

Alternate Names for CD45 Antibody (2B11) [mFluor Violet 610 SE]

• B220
• CD_antigen: CD45
• CD45 antigen
• CD45
• CD45R
• EC 3.1.3.48
• EC:3.1.3.48
• GP180
• LCA
• L-CA
• Leukocyte common antigen
• LY5
• protein tyrosine phosphatase, receptor type, c polypeptide
• PTPRC
• receptor-type tyrosine-protein phosphatase C
• T200 Glycoprotein
• T200 leukocyte common antigen
• T200

Background

CD45, also known as leukocyte common antigen (LCA), T200, or Ly5, is a member C of the class 1 receptor-like protein tyrosine phosphatase (PTPRC) family (1, 2). It is a transmembrane glycoprotein which, due to alternative splicing, has a multiple isoforms with a theoretical molecular weight ranging from 180 - 220 kDa (1, 3-5). Human CD45 is synthesized as a 1281 amino acid sequence consisting of an alternatively spliced extracellular receptor-like region, a cysteine-rich domain, fibronectin-like III repeats, a transmembrane segment, and a cytoplasmic region with tandem protein tyrosine phosphatase (PTP) domains: the membrane proximal domain (D1) and the membrane distal domain (D2) (3, 5). CD45 is expressed on all nucleated hematopoietic cells and their precursors, except mature red blood cells, and is one of the most abundantly-expressed cell-surface glycoproteins, comprising approximately 10% of surface proteins in lymphocytes (3). Functionally, CD45 is essential for development and activation of T-cells and B-cells (1-5). More specifically, CD45 positively regulates antigen receptor signaling and Src-family member kinase activity (1, 3). There are many ways to regulate CD45 phosphatase activity including ligand binding, dimerization, protein interactions, cellular localization, and covalent modifications (3, 6). Ligands for CD45 include pUL11, a transmembrane protein of the cytomegalovirus RL11 (CMV RL11) family, and placental protein 14 (PP14), both of which exclusively bind CD45, and various lectins including CD22, galectin-1, galectin-3, macrophage mannose receptor (MR), and macrophage galactose-type lectin (MGL) (6).

Given its role in immune cell development and activation, CD45 has also been linked to a variety of diseases. The importance of CD45 in immunity has been revealed in human and mouse studies where CD45-deficiency leads to a severe-combined immunodeficiency (SCID) phenotype (2, 3, 6). A CD45-knockout mice study revealed inhibited thymocyte production and poor B-cell response, whereas CD45 activation in mice causes lymphoproliferation and autoantibody production (3). CD45 variants have been associated with altered immune function and autoimmune disorders including multiple sclerosis, systemic lupus erythematosus (SLE), and rheumatoid arthritis (6). Furthermore, altered CD45 expression has been implicated in oncological conditions including chronic lymphatic leukemia, acute lymphatic leukemia, Hodgkin lymphoma, multiple myeloma, and diffuse large B-cell lymphoma (6). Considering its role in autoimmune disorders, immunodeficiency and cancer, CD45 is an ideal therapeutic target (3, 6). The main approaches to control CD45 function is through either selective inhibitors or anti-CD45 antibodies (3).

Alternative names for CD45 includes B220, CD antigen: CD45, CD45 antigen, CD45R, EC 3.1.3.48, GP180, LCA, Leukocyte common antigen, LY5, protein tyrosine phosphatase receptor type c polypeptide, PTPRC, receptor-type tyrosine-protein phosphatase C, T200 Glycoprotein, and T200.

References

1. Trowbridge, I. S., & Thomas, M. L. (1994). CD45: an emerging role as a protein tyrosine phosphatase required for lymphocyte activation and development. Annual review of immunology. https://doi.org/10.1146/annurev.iy.12.040194.000505

2. Andersen, J. N., Jansen, P. G., Echwald, S. M., Mortensen, O. H., Fukada, T., Del Vecchio, R., Tonks, N. K., & Moller, N. P. (2004). A genomic perspective on protein tyrosine phosphatases: gene structure, pseudogenes, and genetic disease linkage. FASEB journal : official publication of the Federation of American Societies for Experimental Biology.

3. Hermiston, M. L., Xu, Z., & Weiss, A. (2003). CD45: a critical regulator of signaling thresholds in immune cells. Annual review of immunology. https://doi.org/10.1146/annurev.immunol.21.120601.140946

4. Tonks, N. K., Diltz, C. D., & Fischer, E. H. (1990). CD45, an integral membrane protein tyrosine phosphatase. Characterization of enzyme activity. The Journal of biological chemistry.

5. Nam, H. J., Poy, F., Saito, H., & Frederick, C. A. (2005). Structural basis for the function and regulation of the receptor protein tyrosine phosphatase CD45. The Journal of experimental medicine. https://doi.org/10.1084/jem.20041890

6. Rheinlander, A., Schraven, B., & Bommhardt, U. (2018). CD45 in human physiology and clinical medicine. Immunology letters. https://doi.org/10.1016/j.imlet.2018.01.009

Limitations

This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.

FAQs for CD45 Antibody (NBP2-34527MFV610). (Showing 1 - 4 of 4 FAQ).

1. We would like to order a CD45 antibody to stain immune cells that were isolated from a ligated sciatic nerve of mice with double immunofluorescence (using PFA-fixed tissue on slides). Which of the following rat monoclonal CD45 antibodies would you recommend: 30-F11, IBL-3/16 or 5C16?
   • I would recommend clone 30-F11. As clone IBL-3/16 has not yet been validated for IHC-P application, we would not be able to guarantee its workability on PFA-fixed tissue. Although both other clones i.e. 30-F11 and 5C16, would be good for your samples, CD45 30-F11 # NB100-77417 is a well known clone that offers more flexibility around protocol because of availability of its conjugated forms. It would be advantageous to use a conjugated primary as you are planning for double-immunostaining procedure.
2. For use in Western Blot with CD45 antibodies, what molecular weight of the band should I expect to see?
   • The theoretical molecular weight for most of our CD45 antibodies is 147 kDa based off the first isoform. Any variation on 147 is due to the immunogen being from a different species and the protein being a slightly different size. CD45 is a family of single chain transmembraneous glycoproteins consisting of at least four isoforms (220, 205, 190, 180 kDa) which share a common large intracellular domain. Their extracellular domains are heavily glycosylated.
3. If this product is used in an application or species as a part of a customer review, will that validate this product in the application/species?
   • If any of our primary antibodes are used in an untested application or species and it is shown to work through images from customer reviews or through publications, this validates the application/species for this product, allowing the tested application/species to fall under our 100% guarantee. Please check out our Innovator's Reward Program if you decide to test a primary antibody with a species or application that is not currently listed. Please note that the Innovator's Reward Program only applies to our primary antibodies.
4. Is CD45 a good target for use in Neurodegeneration studies?
   • Yes, here are the approved research areas we have listed for our CD45 products: Adaptive Immunity, Cell Biology, Cellular Markers, Cytokine Research, Glia Markers, Hematopoietic Stem Cell Markers, Immunology, Innate Immunity, Mast Cell Markers, Mesenchymal Stem Cell Markers, Microglia Markers, Myeloid Cell Markers, Myeloid-derived Suppressor, Neurodegeneration, Neuroscience, Signal Transduction, Stem Cell Markers, Growth and Development.

Bioinformatics

• Gene Symbol: PTPRC
