TIM-4 Antibody (921832) [Phycoerythrin]

Images

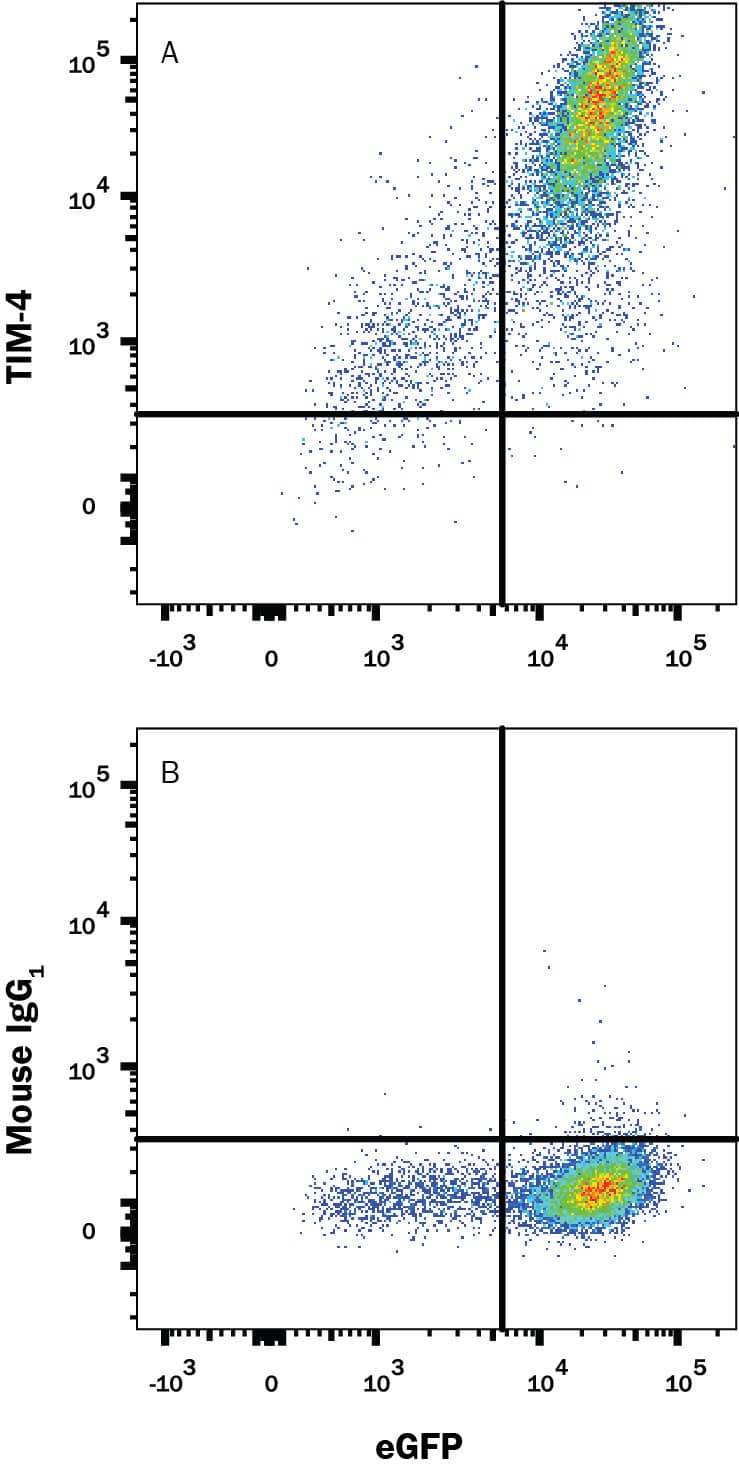

HEK293 human embryonic kidney cell line transfected with human TIM-4 and eGFP was stained with and either (A) Mouse Anti-Human TIM‑4 PE‑conjugated Monoclonal Antibody (Catalog # FAB2929P) or (B) Mouse IgG1 ...read more

Product Details

Summary
Reactivity HuSpecies Glossary
Applications Flow
Clone
921832
Clonality
Monoclonal
Host
Mouse
Conjugate
Phycoerythrin

TIM-4 Antibody (921832) [Phycoerythrin] Summary

Immunogen
Mouse myeloma cell line NS0-derived recombinant human TIM-4
Glu25-Leu315
Accession # Q96H15
Specificity
Detects human TIM-4 in direct ELISAs.
Source
N/A
Isotype
IgG1
Clonality
Monoclonal
Host
Mouse
Gene
TIMD4
Innovator's Reward
Test in a species/application not listed above to receive a full credit towards a future purchase.

Applications/Dilutions

Dilutions
  • Flow Cytometry 10 uL/10^6 cells

Packaging, Storage & Formulations

Storage
Protect from light. Do not freeze.
  • 12 months from date of receipt, 2 to 8 °C as supplied.
Buffer
Supplied in a saline solution containing BSA and Sodium Azide.
Preservative
Sodium Azide

Notes

This product is produced by and ships from R&D Systems, Inc., a Bio-Techne brand.

Alternate Names for TIM-4 Antibody (921832) [Phycoerythrin]

  • FLJ27515
  • Smuckler
  • T-cell immunoglobulin and mucin domain containing 4
  • T-cell immunoglobulin and mucin domain-containing protein 4
  • T-cell membrane protein 4
  • TIM4
  • TIM-4
  • TIMD4
  • TIMD-4

Background

TIM-4 (T cell; immunoglobulin; mucin-4), also known as SMUCKLER, is a 60 kDa member of the TIM family of immune regulating proteins. TIMs are type I transmembrane proteins with one Ig-like V domain and one Ser/Thr-rich mucin domain (1 - 3). The human TIM-4 cDNA encodes a 378 amino acid (aa) precursor that includes a 24 aa signal sequence, a 290 aa extracellular domain (ECD), a 21 aa transmembrane segment, and a 43 aa cytoplasmic tail (4). Structurally, TIM-4 is distinguished from other TIMs by the presence of an RGD motif in its Ig domain and the lack of a site for tyrosine phosphorylation in its cytoplasmic tail. The mucin domain in TIM-4 is larger than in TIM-1 or TIM-3. Within the ECD, human TIM-4 shares 35% and 23% aa sequence identity with TIM-1 and TIM-3, respectively. A TIM-2 ortholog has not been identified in human. The ECD of human TIM-4 shares 45% aa sequence identity with that of mouse and rat TIM-4. TIM-4 is expressed by macrophages and mature dendritic cells but not by lymphocytes (4, 5). TIM-4 binds specifically to TIM-1 which is also the cellular receptor for the hepatitis A virus, and has been implicated in the development of asthma (5 - 7). Among hematopoietic cells, TIM-1 is expressed on activated B and T cells, preferentially in the Th2 subset of CD4+ T cells (5, 8). The interaction of TIM-4 with TIM-1 induces costimulatory and hyperproliferative signals in T cells (5).

  1. Kuchroo, V.K. et al. (2003) Nat. Rev. Immunol. 3:454.
  2. Mariat, C. et al. (2005) Phil. Trans. R. Soc. B 360:1681.
  3. Meyers, J.H. et al. (2005) Trends Mol. Med. 11:362.
  4. Shakhov, A.N. et al. (2004) Eur. J. Immunol. 34:494.
  5. Meyers, J.H. et al. (2005) Nat. Immunol. 6:455.
  6. Feigelstock, D. et al. (1998) J. Virol. 72:6621.
  7. McIntire, J.J. et al. (2001) Nat. Immunol. 2:1109.
  8. Khademi, M. et al. (2004) J. Immunol. 172:7169.

Limitations

This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.
