TIM-1/KIM-1/HAVCR Antibody [Unconjugated]


Western blot shows lysates of NIH‑3T3 mouse embryonic fibroblast cell line. PVDF membrane was probed with 0.25 µg/mL of Goat Anti-Mouse TIM‑1/KIM‑1/HAVCR Antigen Affinity-purified Polyclonal Antibody (Catalog # ...read more

Product Details

Reactivity MuSpecies Glossary
Applications WB

Order Details

View Available Conjugates
Catalog# & Conjugate Size Price
View Available Formulations
Catalog# & Formulation Size Price

TIM-1/KIM-1/HAVCR Antibody [Unconjugated] Summary

Mouse myeloma cell line NS0-derived recombinant mouse TIM‑1/KIM-1/HAVCR
Accession # NP_001160104

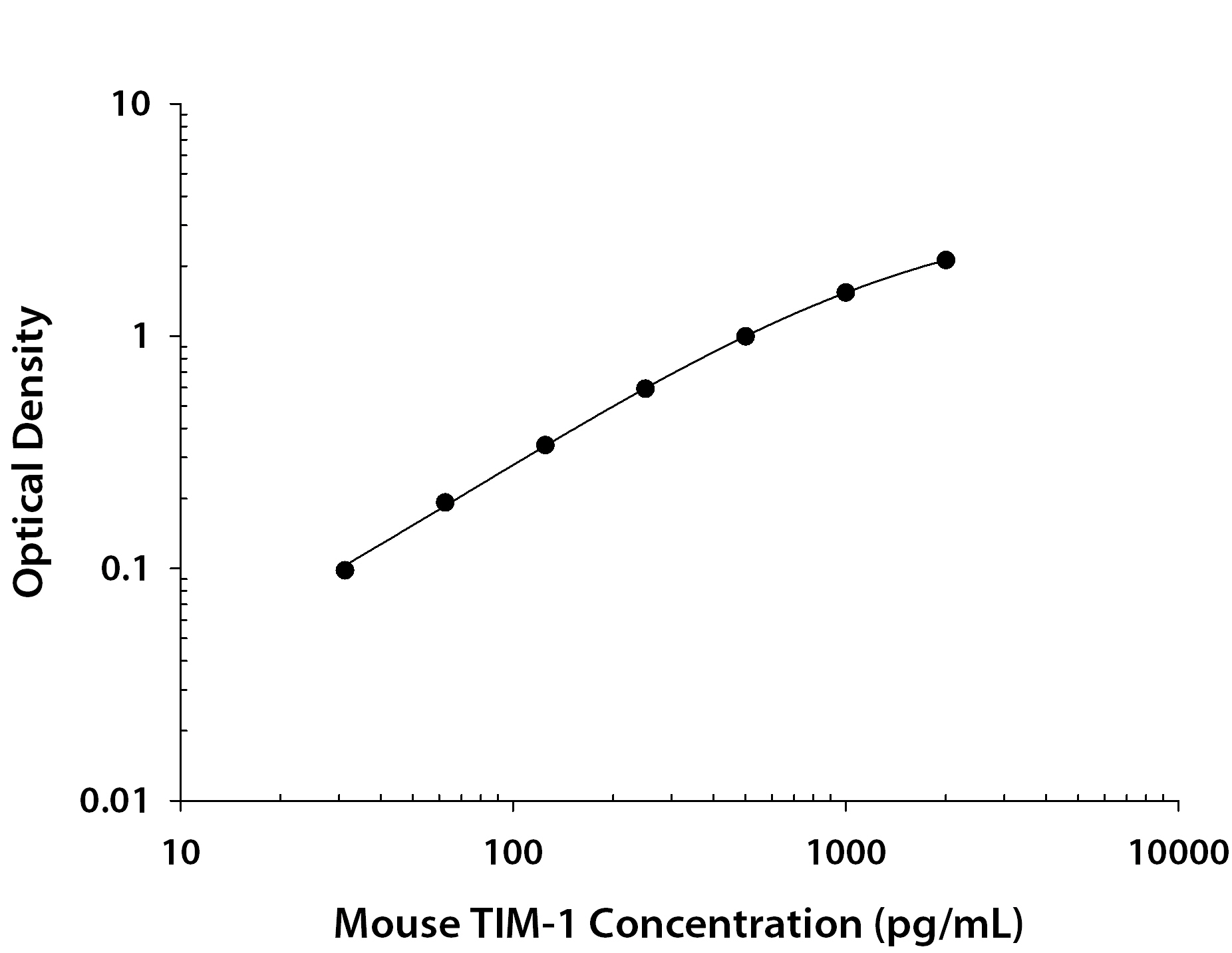

Detects mouse TIM‑1/KIM-1/HAVCR in direct ELISAs and Western blots. In direct ELISAs and Western blots, less than 5% cross-reactivity with recombinant human TIM-1, recombinant mouse (rm) TIM-2, rmTIM-3, rmTIM-4, rmTIM-6, and rmTIM-7 is observed.
Purity Statement
Antigen Affinity-purified
Innovator's Reward
Test in a species/application not listed above to receive a full credit towards a future purchase.


  • Western Blot 0.25 ug/mL
Read Publications using
AF1817 in the following applications:

Packaging, Storage & Formulations

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 6 months, -20 to -70 °C under sterile conditions after reconstitution.
Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.
No Preservative
Reconstitution Instructions
Reconstitute at 0.2 mg/mL in sterile PBS.


This product is produced by and ships from R&D Systems, Inc., a Bio-Techne brand.

Alternate Names for TIM-1/KIM-1/HAVCR Antibody [Unconjugated]

  • CD365
  • HAVCR1
  • HAVCR-1
  • HAVCRT cell immunoglobin domain and mucin domain protein 1
  • hepatitis A virus cellular receptor 1
  • Kidney injury molecule 1
  • KIM1
  • KIM-1
  • T-cell immunoglobulin and mucin domain-containing protein 1
  • TIM1
  • TIM-1
  • TIM-1TIM
  • TIM1TIMD-1
  • TIMD1T-cell membrane protein 1


TIM-1 (T cell-immunoglobulin-mucin; also KIM-1 and HAVCR) is a 70-80 kDa, type I transmembrane glycoprotein member of the TIM family of immunoglobulin superfamily molecules (1-4). This gene family is involved in the regulation of Th1 and Th2-cell-mediated immunity. In mouse, there are eight known TIM genes (# 1-8) vs. only three genes in human (# 1, 3, and 4) (1, 2). Mouse TIM-1 and -2 are counterparts of human TIM-1 while mouse TIM-5 through 8 have no human counterparts (2). Mouse TIM-1 is synthesized as a 305 amino acid (aa) precursor that contains a 21 aa signal sequence, a 216 aa extracellular domain (ECD), a 21 aa transmembrane segment and a 47 aa cytoplasmic domain (5, 6). The ECD contains one V-type Ig-like domain and a mucin region characterized by multiple T-S-P motifs. The mucin region undergoes extensive O-linked glycosylation. The mouse TIM-1 gene is highly polymorphic and, based on rat, may undergo alternate splicing (4, 6). For instance, HBA mice show a 15 aa deletion in the mucin region that occurs in BALB/c mice (6). This difference is associated with a decreased susceptibility to asthma. Other polymorphisms are also documented (6). In human, TIM-1 is known to circulate as a soluble form. It undergoes constitutive cleavage by an undefined MMP, releasing a 75-85 kDa soluble molecule (5). The same thing might be expected in mouse. The ECD of mouse TIM-1 is 50%, 39%, and 80% aa identical to human, canine and rat TIM-1 ECD, respectively. The only two reported ligands for TIM-1 are TIM-4 and the hepatitis A virus (8, 9). However, others are believed to exist, and based on the ligand for TIM-3, one possibility might be an S-type lectin (10). TIM-1 ligation induces T cell proliferation and promotes cytokine production (1, 10). In particular, it induces IL-4 production, and requires the cytoplasmic tyrosine phosphorylation motif (5).

  1. Meyers, J.H. et al. (2005) Trends Mol. Med. 11:1471.
  2. Kuchroo, V.K. et al. (2003) Nat. Rev. Immunol. 3:454.
  3. Mariat, C. et al. (2005) Phil. Trans. R. Soc. B 360:1681.
  4. Ichimura, T. et al. (1998) J. Biol. Chem. 273:4135.
  5. de Souza, A.J. et al. (2005) Proc. Natl. Acad. Sci. USA 102:17113.
  6. McIntire, J.J. et al. (2001) Nat. Immunol. 2:1109.
  7. Bailly, V. et al. (2002) J. Biol. Chem. 277:39739.
  8. Feigelstock, D. et al. (1998) J. Virol. 72:6621.
  9. Zhu, C. et al. (2005) Nat. Immunol. 6:1245.
  10. Meyers, J.H. et al. (2005) Nat. Immunol. 6:455.


This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.
