ROBO1 Antibody


ROBO1 was detected in immersion fixed frozen sections of rat embryo (neural tube) using 5 µg/mL Goat Anti-Rat ROBO1 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF1749) overnight at 4 °C. more
ROBO1 was detected in perfusion fixed frozen sections of rat brain using Goat Anti-Rat ROBO1 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF1749) at 15 µg/mL overnight at 4 °C. Tissue was stained using the more

Product Details

Reactivity RtSpecies Glossary
Applications WB, IHC

Order Details

View Available Conjugates
Catalog# & Conjugate Size Price
View Available Formulations
Catalog# & Formulation Size Price

ROBO1 Antibody Summary

Mouse myeloma cell line NS0-derived recombinant rat ROBO1
Accession # O55005

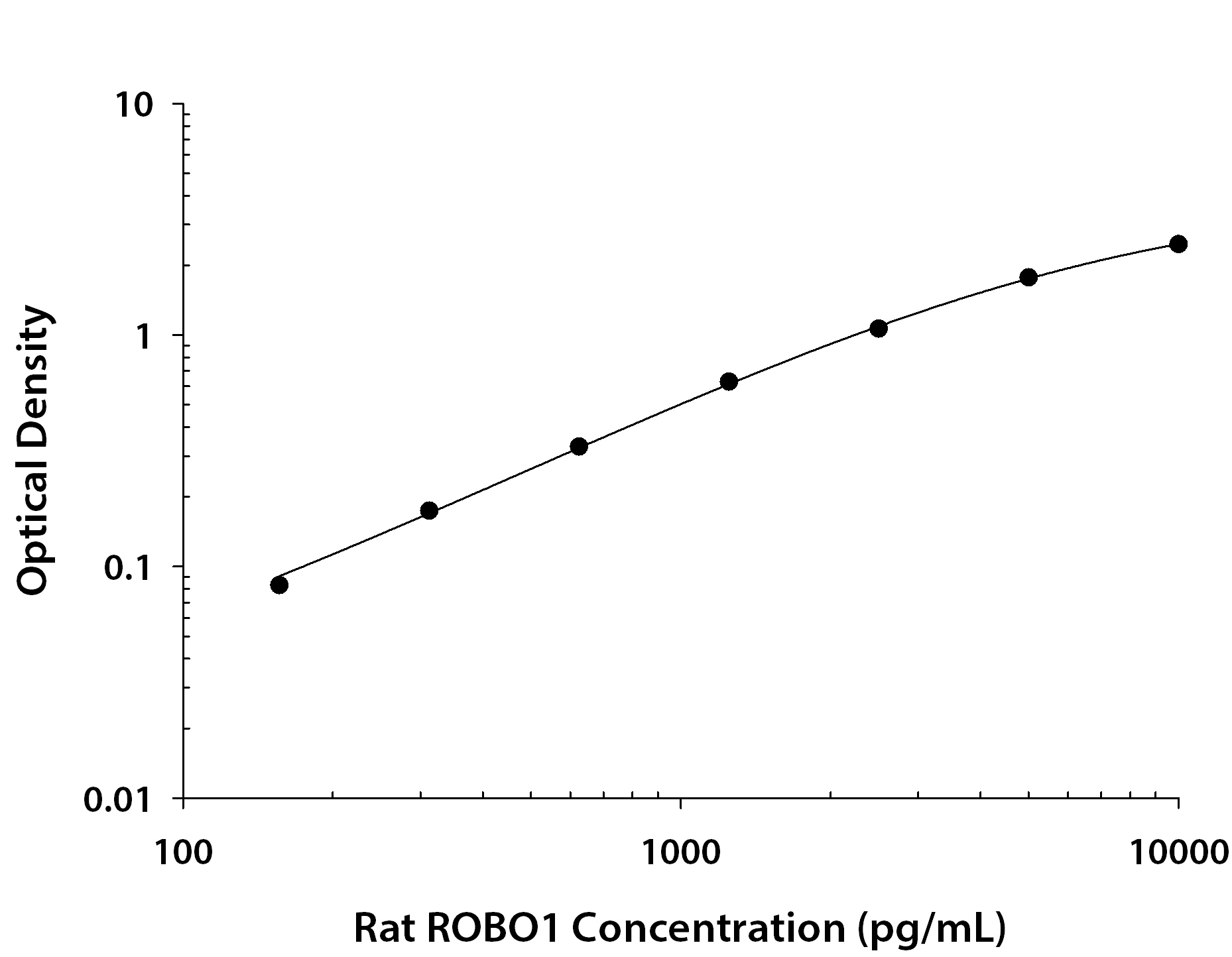

Detects rat ROBO1 in direct ELISAs and Western blots.
Immunogen affinity purified
Purity Statement
Antigen Affinity-purified
Innovator's Reward
Test in a species/application not listed above to receive a full credit towards a future purchase.


  • Immunohistochemistry 5-15 ug/mL
  • Western Blot 0.1 ug/mL
Read Publications using
AF1749 in the following applications:

Packaging, Storage & Formulations

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 6 months, -20 to -70 °C under sterile conditions after reconstitution.
Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.
No Preservative
Immunogen affinity purified
Reconstitution Instructions
Reconstitute at 0.2 mg/mL in sterile PBS.


This product is produced by and ships from R&D Systems, Inc., a Bio-Techne brand.

Alternate Names for ROBO1 Antibody

  • DUTT1
  • DUTT1Drosophila) homolog 1
  • H-Robo-1
  • MGC131599
  • MGC133277
  • ROBO1
  • roundabout, axon guidance receptor, homolog 1 (Drosophila)


Rat ROBO1 (also DUTT1) is a 170-200 kDa member of the four molecule ROBO family of guidance molecules (1-3). The term ROBO derives from round-about, a description of the circuitous pathway axons take in the absence of a functional ROBO gene (3, 4). Rat ROBO1 is a type I transmembrane (TM) glycoprotein that is synthesized as a 1651 amino acid (aa) precursor. It contains an 18 aa signal sequence, an 879 aa extracellular domain (ECD), a 21 aa transmembrane segment, and a 733 aa cytoplasmic region (5, 6). The ECD contains five C2-type Ig-like domains (aa 68-541) and three fibronectin (FN) type III domains (aa 561-864). The cytoplasmic region contains multiple 15-20 aa long CC (conserved cytoplasmic) motifs (C0-C3) (7, 8). Rat ROBO1 is likely to have at least one isoform. Based on the human and mouse gene, rat ROBO1 will utilize an alternate start site, creating an A (long) and B (short) isoform. The difference is the presence of a 32 aa extension at the N-terminus of the mature molecule (occurs in the A form) (9-12). Based on ROBO3 studies, this extension will impact the ability of ROBO1 to bind Slit (10). Rat ROBO1 ECD is 98% and 96% aa identical to the ECD in mouse and human ROBO1, respectively. ROBO1 serves as a repulsing molecule for axons that cross the midline. Initially, ROBO3 allows outgrowing axons to traverse the midline/floorplate. Once crossed, axons express ROBO1 which deflects neurites attempting to recross to the ipsilateral side (13). The chemorepulsant activity of ROBO1 is dependent on ROBO1 binding to SLIT1/2. Inhibition of ROBO1 is likely due to ROBO1-ROBO3 heterophilic binding (10, 13-15).

  1. Guthrie, S. (2001) Curr. Biol. 11:R300.
  2. Guthrie, S. (2004) Curr. Biol. 14:R632.
  3. Park, K.W. et al. (2003) Dev. Biol. 261:251.
  4. Seeger, M. et al. (1993) Neuron 10:409.
  5. Kidd, T. et al. (1998) Cell 92:205.
  6. Marillat, V. et al. (2002) J. Comp. Neurol. 442:130.
  7. Bashaw, G.J. et al. (2000) Cell 101:703.
  8. Jen, J.C. et al. (2004) Science 304:1509.
  9. Clark, K. et al. (2002) FEBS Lett. 523:12.
  10. Camurri, L. et al. (2005) Mol. Cell. Neurosci. 30:485.
  11. Sundaresan, V. et al. (1998) Mol. Cell. Neurosci. 11:29.
  12. GenBank Accession # O55005.
  13. Sabatier, C. et al. (2004) Cell 117:157.
  14. Liu, Z. et al. (2004) Mol. Cell. Neurosci. 26:232.
  15. Brose, K. et al. (1999) Cell 96:795.


This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.
