NOD2 Antibody

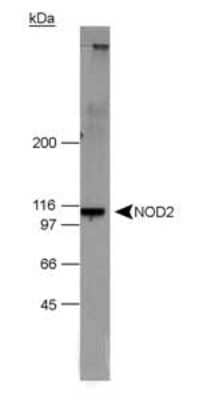

Western Blot: NOD2 Antibody [NB500-253] - Detection of NOD2 in 20 ug of NOD2 transfected 293T cell lysate using NB 500-253. ECL detection in 15 seconds.

Immunocytochemistry/Immunofluorescence: NOD2 Antibody [NB500-253] - NOD2 antibody was tested in HT-29 cells with DyLight 488 (green). Nuclei and alpha-tubulin were counterstained with DAPI (blue) and Dylight 550 (red).

Immunohistochemistry-Paraffin: NOD2 Antibody [NB500-253] - Analysis of FFPE human skin using NOD2 antibody at 1:250 on a Bond Rx autostainer (Leica Biosystems). The assay involved 20 minutes of heat induced antigen retrieval (HIER) using 10 mM sodium citrate buffer (pH 6.0) and endogenous peroxidase quenching with peroxide block. The sections were incubated with primary antibody for 30 minutes and Bond Polymer Refine Detection (Leica Biosystems) with DAB was used for signal development followed by counterstaining with hematoxylin. Whole slide scanning and capturing of representative images was performed using Aperio AT2 (Leica Biosystems). Cytoplasmic staining of NOD2 was observed. Staining was performed by Histowiz.

Product Discontinued

NOD2 Antibody Summary

• Immunogen: A synthetic peptide made to the C-terminal region of human NOD2 (between residues 1000-1040). [UniProt# Q9HC29]
• Predicted Species: Primate (100%). Backed by our 100% Guarantee.
• Isotype: IgG
• Clonality: Polyclonal
• Host: Rabbit
• Gene: NOD2
• Purity: Immunogen affinity purified

Applications/Dilutions

• Dilutions:
  • Immunocytochemistry/ Immunofluorescence 1:50 - 1:100
  • Immunohistochemistry 1:250
  • Immunohistochemistry-Paraffin 1:250
  • Immunoprecipitation
  • Western Blot 0.5 - 2 ug/mL
• Application Notes: This NOD2 antibody has been tested for Western blot on NOD2 transfected 293T lysates where a band is seen at ~110 kDa. We did not see positive results probing endogenous protein using HT29 lysates. The observed molecular weight of the protein may vary from the listed predicted molecular weight due to post translational modifications, post translation cleavages, relative charges, and other experimental factors. Use in Immunoprecipitation reported in scientific literature (PMID:30709874).
• Theoretical MW: 110 kDa.
  Disclaimer note: The observed molecular weight of the protein may vary from the listed predicted molecular weight due to post translational modifications, post translation cleavages, relative charges, and other experimental factors.

Packaging, Storage & Formulations

• Storage: Store at 4C short term. Aliquot and store at -20C long term. Avoid freeze-thaw cycles.
• Buffer: Tris-Glycine, 0.15 M NaCl
• Preservative: 0.05% Sodium Azide
• Concentration: 0.87 mg/ml
• Purity: Immunogen affinity purified

Alternate Names for NOD2 Antibody

• BLAU
• CARD15caspase recruitment domain protein 15
• caspase recruitment domain family, member 15
• Caspase recruitment domain-containing protein 15
• CDACUG
• CLR16.3
• IBD1NLR family, CARD domain containing 2
• Inflammatory bowel disease protein 1
• NLRC2
• NOD-like receptor C2
• nucleotide-binding oligomerization domain 2
• nucleotide-binding oligomerization domain containing 2
• nucleotide-binding oligomerization domain, leucine rich repeat and CARD domaincontaining 2
• nucleotide-binding oligomerization domain-containing protein 2
• PSORAS1NOD2B

Background

The NOD2 (nucleotide-binding oligomerization domain containing 2) protein is expressed in the antigen-presenting cells (monocytes and macrophages) and in intestinal Paneth cells, keratinocytes, T cells, NK cells, and CD34+ stem cells. Alongwith Apaf-1 and CIITA, NOD2 belongs to NLR/NOD leucine-rich repeat containing protein family. NOD2 generally localizes to the cytoplasm from where it translocates to cell membranes, a mechanism suggested as important for its functionality. After interacting with CARD-CARD, NOD2 may bind/activate RIP2/RICK and this active NOD2:RIP2 complex then stimulates MAPK (JNK, ERK, p38), NF-kB, autophagy and antigen presentation. NOD2 has an ability to senses the presence of MDP (muramyl dipeptide), a breakdown product of peptidoglycan found in bacteria, and after recognition of intracellular bacteria, NOD2 pathway execute directing the secretion of antimicrobial peptides and cytokines/chemokines to induce innate immune clearance of the pathogen as well as to tailor the adaptive immune system to help fight the bacterial infection. Defects in NOD2 are the cause of Blau syndrome (BS), susceptibility to inflammatory bowel disease type 1 (IBD1) and sarcoidosis early-onset (EOS).

Limitations

This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.

Publications for NOD2 Antibody (NB500-253)(5)

Publications using NB500-253

• Ahn M Y, Kang J K et al. Expression of nucleotide-binding oligomerization domain 1 and 2 in oral lichen planus. J Dent Sci 2020-01-03 [PMID: 32256993] (IF/IHC, Human)
• Lipinski S, Petersen BS, Barann M et al. Missense variants in NOX1 and p22phox in a case of very-early-onset inflammatory bowel disease are functionally linked to NOD2 Cold Spring Harb Mol Case Stud. 2017-11-07 [PMID: 30709874] (IP, WB, Human)
• Lappas M. NOD1 and NOD2 Regulate Proinflammatory and Prolabor Mediators in Human Fetal Membranes and Myometrium via Nuclear Factor-Kappa B. Biol Reprod 2013-07-18 [PMID: 23740944]
• Lipinski S, Grabe N, Jacobs et al. RNAi screening identifies mediators of NOD2 signaling: Implications for spatial specificity of MDP recognition Proc Natl Acad Sci U S A 2012-12-03 [PMID: 23213202] (IF/IHC, ICC/IF, WB, Human)
• Till A et al. A role for membrane-bound CD147 in NOD2-mediated recognition of bacterial cytoinvasion. J Cell Sci;121(Pt 4):487-95. 2008-02-15 [PMID: 18256385] (ICC/IF, Human)

FAQs for NOD2 Antibody (NB500-253). (Showing 1 - 1 of 1 FAQs).

1. Can you suggest the best NOD2 antibody for detection of endogenous NOD2 in human fibroblasts?
   • For detecting endogenous NOD2 in human samples, I would recommend NB100-524. This antibody has been validated for use in WB, IHC-Paraffin and IP.

Bioinformatics

• Gene Symbol: NOD2
