Recombinant Human FGF-20 Protein, CF

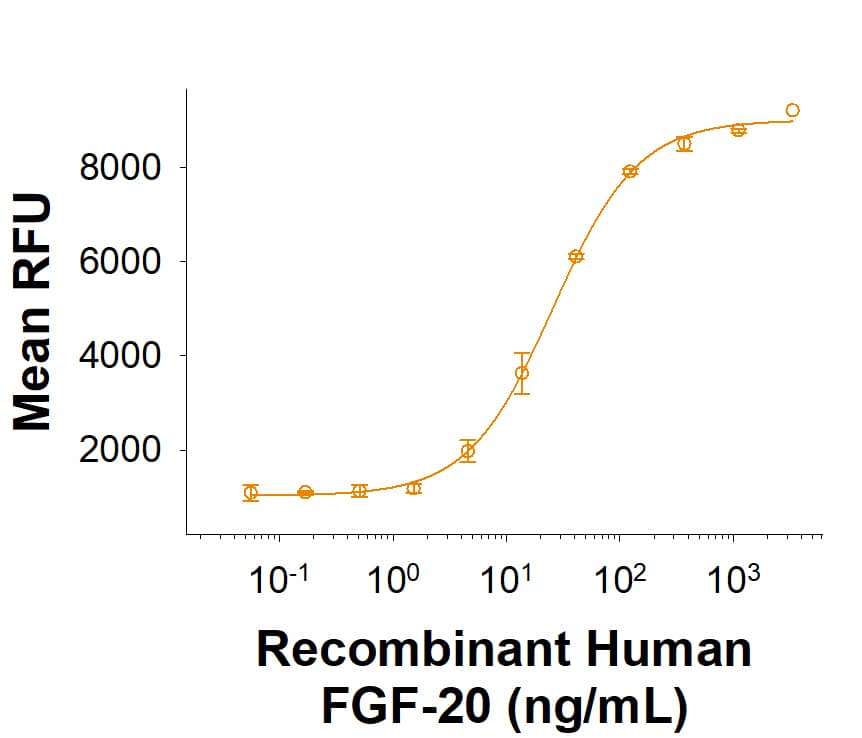

Recombinant human FGF-20 (2547-FG/CF) stimulates proliferation in the NR6R-3T3 mouse fibroblast cell line. The ED50 for this effect is 0.2-1 ng/mL in the presence of 1 µg/mL of heparin.

Product Details

Reactivity HuSpecies Glossary
Applications Bioactivity

Order Details

View Available Formulations
Catalog# & Formulation Size Price

Recombinant Human FGF-20 Protein, CF Summary

Details of Functionality
Measured in a cell proliferation assay using NR6R‑3T3 mouse fibroblast cells. Rizzino, A. et al. (1988) Cancer Res. 48:4266; Thomas, K. et al. (1987) Methods Enzymol. 147:120. The ED50 for this effect is 0.2-1 ng/mL in the presence of 1 µg/mL of heparin.
E. coli-derived human FGF-20 protein
Ala2-Thr211, with an N-terminal Met and a 6-His tag
Accession #
N-terminal Sequence
Protein/Peptide Type
Recombinant Proteins
>97%, by SDS-PAGE under reducing conditions and visualized by silver stain.
Endotoxin Note
<0.01 EU per 1 μg of the protein by the LAL method.


  • Bioactivity
Theoretical MW
24 kDa.
Disclaimer note: The observed molecular weight of the protein may vary from the listed predicted molecular weight due to post translational modifications, post translation cleavages, relative charges, and other experimental factors.
Read Publications using
2547-FG/CF in the following applications:

Packaging, Storage & Formulations

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 3 months, -20 to -70 °C under sterile conditions after reconstitution.
Lyophilized from a 0.2 μm filtered solution in MOPS, (NH4)2SO4, DTT and EDTA.
>97%, by SDS-PAGE under reducing conditions and visualized by silver stain.
Reconstitution Instructions
Reconstitute at 100 μg/mL in sterile PBS.


This product is produced by and ships from R&D Systems, Inc., a Bio-Techne brand.

Alternate Names for Recombinant Human FGF-20 Protein, CF

  • FGF20
  • FGF-20
  • fibroblast growth factor 20


Fibroblast growth factor 20 (FGF-20) is a member of the FGF gene family, which currently contains 22 members. Based on its structure, it is further classified as an FGF-9 subfamily member. All FGF family members are heparin-binding growth factors with a 120 amino acid (aa) core FGF domain that exhibits a beta -trefoil structure (1). The cDNA of FGF-20 predicts a 211 aa polypeptide without a canonical signal peptide sequence, a feature shared with other members of this subfamily (2-4). Nevertheless, it is secreted with a molecular weight of 27 kDa (2-4). FGF-20 is known to bind to heparin (4). No alternate splice forms have been reported. However, three amino acid polymorphisms are known, and single nucleotide polymorphisms in noncoding regions that may effect expression show a strong correlation with a risk of developing Parkinson’s disease (5, 6). Human FGF-20 shows 98% aa identity to bovine FGF-20 and 95% aa identity to both rat and mouse FGF-20. Within the FGF-9 subfamily, FGF-20 is 69% and 63% aa identical to human FGF-9 and FGF-16, respectively. Human FGF-20 is reported to be promiscuous in its selection of receptors which include FGF R1c, FGF R2c, FGF R3b, FGF R3c and FGF R4 (4, 7, 8). FGF-20 is expressed a variety of cells, including dopaminergic neurons (2), fibroblasts, keratinocytes and breast epithelium (4), and multiple sites in the fetus (2, 7). Finally, the expression of FGF-20 and DKK-1 is regulated by beta -catenin during development and tumorigenesis, implying that FGF-20 may play a role in the oncogenesis induced by the Wnt signaling pathway (9).

  1. Itoh, N. and D.M. Ornitz (2004) Trends Genet. 20:563.
  2. Ohmachi, S. et al. (2000) Biochem. Biophys. Res. Commun. 277:355.
  3. Kirikoshi, H. et al. (2000) Biochem. Biophys. Res. Commun. 274:337.
  4. Jeffers, M. et al. (2001) Cancer Res. 61:3131.
  5. van der Walt, J. et al. (2004) Am. J. Hum. Genet. 74:1121.
  6. Genbank Accession # Q9NP95.
  7. Lavine, K.J. et al. (2005) Dev. Cell 8:85.
  8. Ohmachi, S. et al. (2003) J. Neurosci. Res. 72:436.
  9. Chamorro, M.N. et al. (2005) EMBO J. 24:73.
