PDE6D Antibody - BSA Free

Immunohistochemistry-Paraffin: PDE6D Antibody [NBP1-32730] - SAS xenograft, using PDE6D antibody at 1:500 dilution. Antigen Retrieval: Trilogy™ (EDTA based, pH 8.0) buffer, 15min.

Western Blot: PDE6D Antibody [NBP1-32730] - Mouse tissue extract (50 ug) was separated by 15% SDS-PAGE, and the membrane was blotted with PDE6D antibody [N1C3] diluted at 1:15000. The HRP-conjugated anti-rabbit IgG antibody (NBP2-19301) was used to detect the primary antibody.

Immunocytochemistry/Immunofluorescence: PDE6D Antibody [NBP1-32730] -HeLa cells were fixed in 4% paraformaldehyde at RT for 15 min. Green: PDE6D stained by PDE6D antibody [N1C3] diluted at 1:500. Red: alpha Tubulin, a cytoskeleton marker, stained by alpha Tubulin antibody [114] diluted at 1:1000. Scale bar= 10um

Western Blot: PDE6D Antibody [NBP1-32730] - Whole cell extract (30 ug) was separated by 15% SDS-PAGE, and the membrane was blotted with PDE6D antibody [N1C3] (NBP1-32730) diluted at 1:1000. The HRP-conjugated anti-rabbit IgG antibody was used to detect the primary antibody.

• Reactivity: Hu, Mu, Xp, Bv, Ca, RM, Ze
• Applications: WB, ICC/IF, IHC
• Clonality: Polyclonal
• Host: Rabbit
• Conjugate: Unconjugated
• Format: BSA Free

PDE6D Antibody - BSA Free Summary

• Immunogen: Full length human PDE6D Recombinant protein.
• Predicted Species: Bovine (99%), Rhesus Macaque (99%), Zebrafish (90%), Canine (98%). Backed by our 100% Guarantee.
• Isotype: IgG
• Clonality: Polyclonal
• Host: Rabbit
• Gene: PDE6D
• Purity: Antigen Affinity-purified

Applications/Dilutions

• Dilutions:
  • Immunocytochemistry/ Immunofluorescence 1:100-1:1000
  • Immunohistochemistry 1:100-1:1000
  • Immunohistochemistry-Paraffin 1:100-1:1000
  • Western Blot 1:500-1:20000
• Theoretical MW: 17 kDa.
  Disclaimer note: The observed molecular weight of the protein may vary from the listed predicted molecular weight due to post translational modifications, post translation cleavages, relative charges, and other experimental factors.

Reactivity Notes

Rat (85%). Xenopus reactivity reported from a verified customer review.

Packaging, Storage & Formulations

• Storage: Aliquot and store at -20C or -80C. Avoid freeze-thaw cycles.
• Buffer: PBS (pH 7), 20% Glycerol
• Preservative: 0.025% Proclin 300
• Purity: Antigen Affinity-purified

Alternate Names for PDE6D Antibody - BSA Free

• GMP-PDE delta
• PDE6D
• PDED
• phosphodiesterase 6D, cGMP-specific, rod, delta
• Protein p17
• retinal rod rhodopsin-sensitive cGMP 3'-5'-cyclic phosphodiesterase subunitdelta

Background

Human PDE6D was originally identified as a fourth subunit of rod-specific cGMP phosphodiesterase, PDE6. Catalytically active PDE6 is a heterodimer (alpha beta) that is regulated by two inhibitory gamma subunits. As PDE6D does not modify the catalytic properties of PDE alpha beta, its function is still unresolved. Recombinant human PDE6D, fused to His-tag at C-terminus, was expressed in E.coli and purified by using conventional chromatography techniques.

Limitations

This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.

⚠ WARNING: This product can expose you to chemicals including mercury, which is known to the State of California to cause reproductive toxicity with developmental effects.  For more information go to www.P65Warnings.ca.gov.

Publications for PDE6D Antibody (NBP1-32730)(2)

Publications using NBP1-32730

• Teng M, Lu W, Donovan KA et al. Development of PDE6D and CK1 alpha Degraders through Chemical Derivatization of FPFT-2216 Journal of medicinal chemistry 2021-12-29 [PMID: 34965125]
• Maza NA, Schiesser WE, Calvert PD An intrinsic compartmentalization code for peripheral membrane proteins in photoreceptor neurons J. Cell Biol. 2019-10-08 [PMID: 31594805]

Review for PDE6D Antibody (NBP1-32730) (1)

Average Rating: 4

(Based on 1 review)

We have 1 review tested in 1 species: Xenopus laevis.

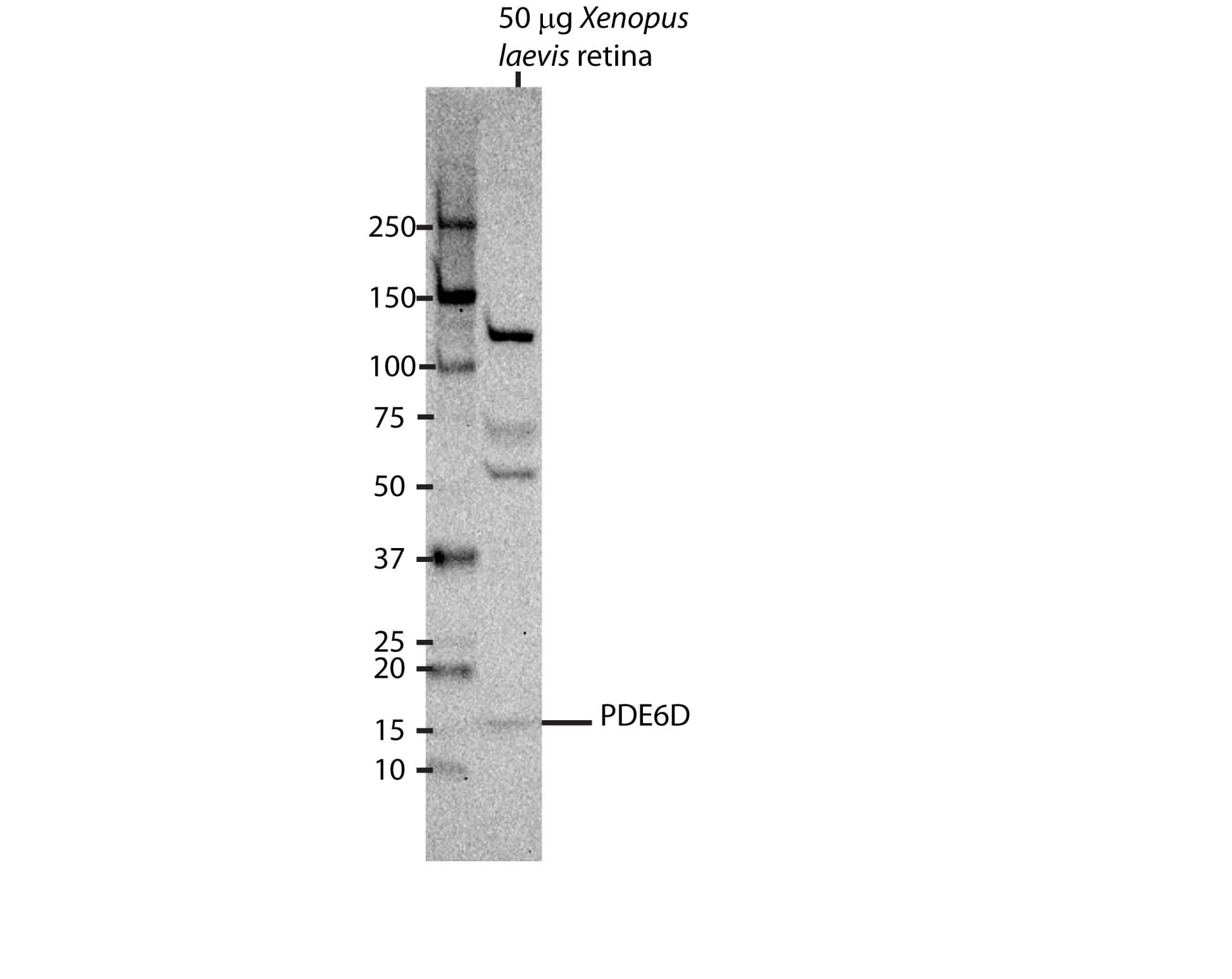

reviewed by: Nycole Maza WB Xenopus laevis 08/03/2018

Summary

• Application: Western Blot
• Sample Tested: X. laevis whole retina lysate: 50ug/well
• Species: Xenopus laevis
• Lot: 40023

Comments

• Comments: Used at 1:500 dilution. Detected with Mouse anti-rabbit secondary antibody.

Bioinformatics

• Gene Symbol: PDE6D
