PD-L1 Antibody (130021) [Alexa Fluor® 488]

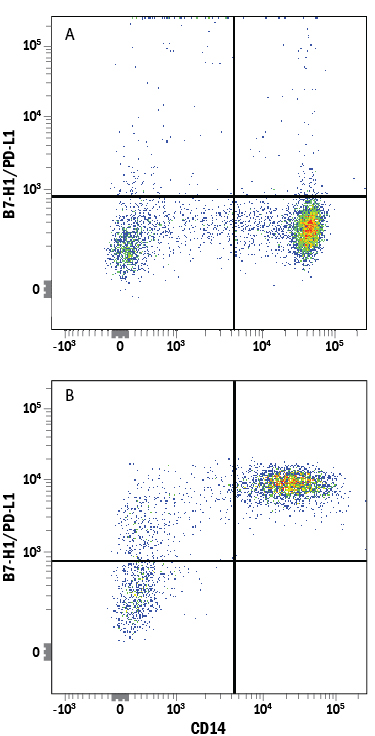

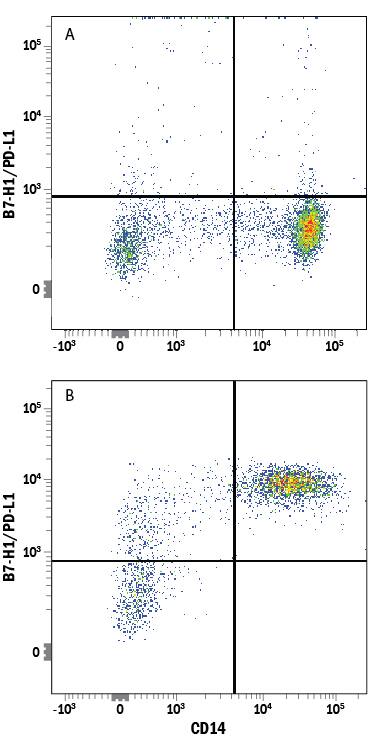

Human peripheral blood mononuclear cells (PBMCs) (A) resting or (B) treated with 1 µg/mL LPS overnight were stained with Mouse Anti-Human CD14 APC-conjugated Monoclonal Antibody (Catalog # FAB3832A) and Mouse Anti-Human B7-H1/PD-L1 Alexa Fluor® 488-conjugated Monoclonal Antibody (Catalog # FAB1561G). Quadrant markers were set based on control antibody staining (Catalog # IC002G). View our protocol for Staining Membrane-associated Proteins.

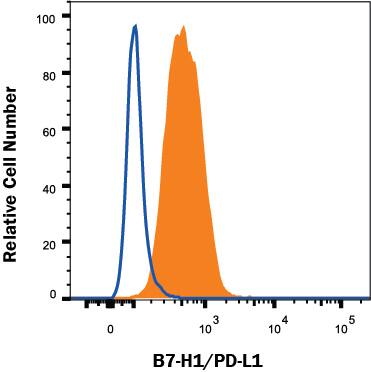

MDA-MB-231 human breast adenocarcinoma cell line was stained with Mouse Anti-Human PD-L1/B7-H1 Alexa Fluor® 488-conjugated Monoclonal Antibody (Catalog # FAB1561G, filled histogram) or isotype control antibody (Catalog # IC002G, open histogram). Adherent cells were prepared by either manual scraping or with TrypLE Express treatment with similar results. View our protocol for Staining Membrane-associated Proteins.

• Reactivity: Hu
• Applications: Flow
• Clone: 130021
• Clonality: Monoclonal
• Host: Mouse
• Conjugate: Alexa Fluor 488

PD-L1 Antibody (130021) [Alexa Fluor® 488] Summary

• Immunogen: Mouse myeloma cell line NS0-derived recombinant human B7‑H1/PD‑L1
  Phe19-Thr239
  Accession # Q9NZQ7
• Specificity: Detects human B7‑H1/PD‑L1 in direct ELISAs. In direct ELISAs, no cross-reactivity with recombinant human (rh) B7-1, -2, -H2, -H3, -H3b,
  -H4, rhPD-L2, recombinant mouse B7-H1, recombinant rat (rr) B7-1, or rrB7-2 is observed.
• Source: N/A
• Isotype: IgG1
• Clonality: Monoclonal
• Host: Mouse
• Gene: CD274
• Purity Statement: Protein A or G purified from hybridoma culture supernatant

Applications/Dilutions

• Dilutions:
  • Flow Cytometry 5 uL/10^6 cells

Packaging, Storage & Formulations

• Storage: Protect from light. Do not freeze.
  • 12 months from date of receipt, 2 to 8 °C as supplied.
• Buffer: Supplied in a saline solution containing BSA and Sodium Azide.
• Preservative: Sodium Azide

Notes

This product is provided under an agreement between Life Technologies Corporation and R&D Systems, Inc, and the manufacture, use, sale or import of this product is subject to one or more US patents and corresponding non-US equivalents, owned by Life Technologies Corporation and its affiliates. The purchase of this product conveys to the buyer the non-transferable right to use the purchased amount of the product and components of the product only in research conducted by the buyer (whether the buyer is an academic or for-profit entity). The sale of this product is expressly conditioned on the buyer not using the product or its components (1) in manufacturing; (2) to provide a service, information, or data to an unaffiliated third party for payment; (3) for therapeutic, diagnostic or prophylactic purposes; (4) to resell, sell, or otherwise transfer this product or its components to any third party, or for any other commercial purpose. Life Technologies Corporation will not assert a claim against the buyer of the infringement of the above patents based on the manufacture, use or sale of a commercial product developed in research by the buyer in which this product or its components was employed, provided that neither this product nor any of its components was used in the manufacture of such product. For information on purchasing a license to this product for purposes other than research, contact Life Technologies Corporation, Cell Analysis Business Unit, Business Development, 29851 Willow Creek Road, Eugene, OR 97402, Tel: (541) 465-8300. Fax: (541) 335-0354.

This product is produced by and ships from R&D Systems, Inc., a Bio-Techne brand.

Alternate Names for PD-L1 Antibody (130021) [Alexa Fluor® 488]

• Avelumab
• B7-H
• B7H1
• B7-H1
• B7H1PDCD1L1
• CD274 antigenMGC142294
• CD274 molecule
• CD274
• PDCD1L1
• PDCD1LG1
• PDCD1LG1MGC142296
• PDL1
• PD-L1
• PD-L1B7 homolog 1
• PDL1PDCD1 ligand 1
• programmed cell death 1 ligand 1
• Programmed death ligand 1

Background

Human B7 homolog 1 (B7-H1), also called programmed death ligand 1 (PD-L1)and  programmed cell death 1 ligand 1 (PDCD1L1), is a member of the growing B7 family of immune proteins that provide signals for both stimulating and inhibiting T cell activation. Other family members include B7-1, B7-2, B7-H2, PDL2 and B7-H3. B7 proteins are members of the immunoglobulin (Ig) superfamily. Their extracellular domains contain 2 Ig-like domains and all members have short cytoplasmic domains. Among the family members, there is about 20-25% amino acid identity. Human and mouse B7-H1 share approximately 70% amino acid sequence identity. B7-H1 has been identified as one of two ligands for programmed death-1 (PD-1), a member of the CD28 family of immunoreceptors. The B7-H1 gene encodes a 291 amino acid (aa) type I membrane precursor protein with a putative 18 aa signal peptide, a 220 aa extracellular domain, a 21 aa transmembrane region, and a 31 aa cytoplasmic domain. Human B7-H1 is constitutively expressed in several organs such as heart, skeletal muscle, placenta and lung, and in lower amounts in thymus, spleen, kidney and liver. B7-H1 expression is upregulated in a small fraction of activated T and B cells and a much larger fraction of activated monocytes. B7-H1 expression is also induced in dendritic cells and keratinocytes after IFN-gamma stimulation. Interaction of B7-H1 with PD-1 results in inhibition of TCR-mediated proliferation and cytokine production. The B7-H1:PD-1 pathway is involved in the negative regulation of some immune responses and may play an important role in the regulation of peripheral tolerance.

1. Nishimura, H. and T. Honjo (2001) Trends Immunol. 22:265.
2. Freeman, G.J. et al. (2000) J. Exp. Med. 192:1027.
3. Latchman, Y. et al. (2001) Nat. Immunol. 2:261.

Limitations

This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.

Publications for PD-L1 Antibody (FAB1561G)(3)

Publications using FAB1561G

• Huang SW, Pan CM, Lin YC et al. BiTE-Secreting CAR-??T as a Dual Targeting Strategy for the Treatment of Solid Tumors Advanced science (Weinheim, Baden-Wurttemberg, Germany) 2023-04-20 [PMID: 37078788]
• RI Azevedo, E Minskaia, A Fernandes-, AIS Vieira, CL da Silva, JMS Cabral, JF Lacerda Mesenchymal stromal cells induce regulatory T cells via epigenetic conversion of human conventional CD4 T cells in vitro Stem Cells, 2020-04-30;0(0):. 2020-04-30 [PMID: 32352186] (Flow Cytometry, Human)
• Mazel M, Jacot W, Pantel K, Bartkowiak K, Topart D, Cayrefourcq L, Rossille D, Maudelonde T, Fest T, Alix-Panabieres C Frequent expression of PD-L1 on circulating breast cancer cells. Mol Oncol, 2015-06-09;9(9):1773-82. 2015-06-09 [PMID: 26093818] (Flow Cytometry, Human)

Bioinformatics

• Gene Symbol: CD274
• Uniprot:
  • Q9NZQ7()
