KIR2DL4/CD158d Antibody (181703) [Unconjugated]

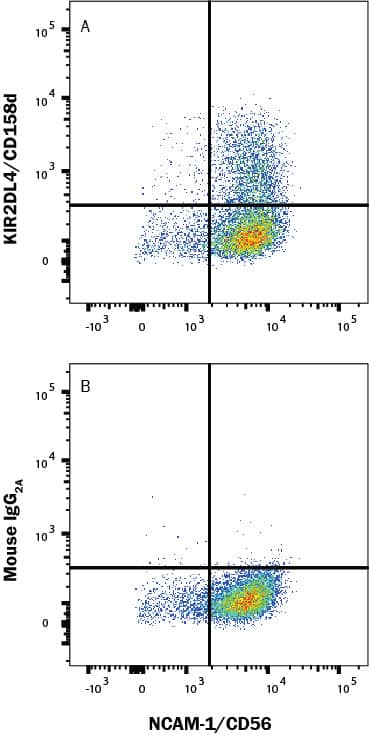

Human peripheral blood mononuclear cell (PBMC) NK cells were expanded with Cloudz Human NK Cell Expansion Kit (CLD004) for 10 days and stained with (A) Mouse Anti-Human KIR2DL4/CD158d Monoclonal Antibody (Catalog # more

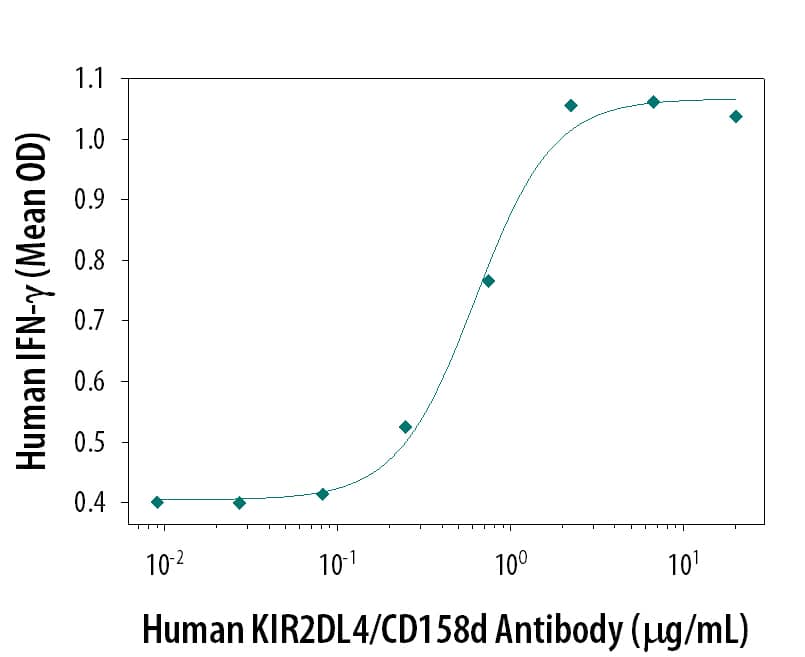

Human KIR2DL4/CD158d Monoclonal Antibody induces IFN‑ gamma secretion in the NK-92 human natural killer lymphoma cell line in a dose-dependent manner, as measured using the Quantikine Human IFN‑ gamma ELISA Kit more

Product Details

Reactivity HuSpecies Glossary
Applications Flow, CyTOF-ready, Func

Order Details

KIR2DL4/CD158d Antibody (181703) [Unconjugated] Summary

BaF3 mouse pro-B cell line transfected with human KIR2DL4/CD158d
Accession # Q99706
Stains human KIR2DL4/CD158d transfected BaF/3 cells. It does not recognize transfectants that express KIR2DL1, 2DL2, 2DL3, 2DL5, 2DS1, 2DS2, 2DS4, 3DL1, 3DL2, or 3DS1.
Purity Statement
Protein A or G purified from hybridoma culture supernatant
Endotoxin Note
<0.10 EU per 1 μg of the antibody by the LAL method.
Innovator's Reward
Test in a species/application not listed above to receive a full credit towards a future purchase.


  • Agonist Activity 0.5-2 ug/mL
  • CyTOF-reported
  • Flow Cytometry 0.25 ug/10^6 cells
Read Publications using
MAB2238 in the following applications:

Packaging, Storage & Formulations

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 6 months, -20 to -70 °C under sterile conditions after reconstitution.
Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.
No Preservative
Reconstitution Instructions
Reconstitute at 0.5 mg/mL in sterile PBS.


This product is produced by and ships from R&D Systems, Inc., a Bio-Techne brand.

Alternate Names for KIR2DL4/CD158d Antibody (181703) [Unconjugated]

  • 103AS
  • 15.212
  • CD158 antigen-like family member D
  • CD158d antigen
  • CD158d
  • CD158DKIR103ASKiller cell inhibitory receptor 103AS
  • G9P
  • killer cell immunoglobulin-like receptor 2DL4
  • killer cell immunoglobulin-like receptor, two domains, long cytoplasmic tail, 4
  • killer Ig receptor
  • KIR103
  • KIR-103AS
  • KIR2DL4
  • MHC class I NK cell receptor KIR103AS
  • natural killer cell inhibitory receptor
  • NK cell receptor


KIR2DL4 (also known as 2DL4, p49, CD158d, KIR103) is a type I transmembrane protein of the killer cell Ig-like receptor (KIR) family expressed on NK and subsets of gamma δT and memory/effector alpha beta T cells. KIR2DL4 is a unique KIR (1-3); alleles are not clonally restricted but are expressed codominantly (4) in all activated NK cells and constitutively on CD56hi NK cells. KIR members with two Ig-like domains (2D) usually express domains D1 and D2, but KIR2DL4 expresses D0 and D2. Other long-tailed (L) KIR have two cytoplasmic inhibitory signaling domains (ITIM), but KIR2DL4 has one ITIM and also exhibits characteristics of activating KIR (2). An arginine within the transmembrane sequence of KIR2DL4 interacts with the signaling molecule Fc epsilon RI-gamma , while in activating KIR, a transmembrane lysine interacts with DAP12 (1, 5). The KIR2DL4 gene is highly polymorphic. Seven splice variants missing one or more exons have been identified, but it is not clear whether these are expressed. Several of the nine alleles identified encode a frameshift creating a prematurely truncated protein. It is estimated that up to 25% of humans do not express KIR2DL4 capable of reaching the cell surface (1, 7, 10). Human KIR2DL4 is 65-83% amino acid identical to other primates. KIR receptors have no structural orthologs in non-primates, although mouse Ly49 proteins are functional orthologs. Cross-linking of KIR2DL4 induces NK cells to produce IFN-gamma (6, 7); stimulation with IL-2 upregulates cell surface expression on CD56dim cells and allows cytotoxicity (7). Although a role in immune privilege of the fetus has been suggested due to reported recognition of fetal trophoblast HLA-G by KIR2DL4 in the maternal decidua (11), subsequent data have not supported this recognition (1, 9).

  1. Lanier, L.L. (2005) Annu. Rev. Immunol. 23:225.
  2. Faure, M. and E.O. Long (2002) J. Immunol. 168:6208.
  3. Selvakumar, A. et al. (1996) Tissue Antigens 48:285.
  4. Chan, H-W. et al. (2003) J. Exp. Med. 197:245.
  5. Kikuchi-Maki, A. et al. (2005) J. Immunol. 174:3859.
  6. Rajagopalan, S. et al. (2001) J. Immunol. 167:1877.
  7. Kikuchi-Maki, A. et al. (2003) J. Immunol. 171:3415.
  8. Gedil, M.A. et al. (2005) Tissue Antigens 65:402.
  9. Witt, C.S. et al. (2002) Eur. J. Immunol. 32:18.
  10. Goodridge, J.P. et al. (2003) J. Immunol. 171:1768.
  11. Ponte, M. et al. (1999) Proc. Natl. Acad. Sci. USA 96:5674.


This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.
