GPIHBP1 Antibody

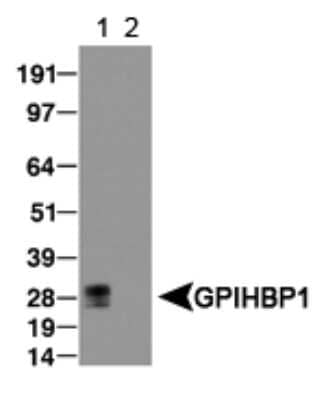

Western Blot: GPIHBP1 Antibody [NB110-41537] - (1) Detection of GPIHBP1in transfected lysate and (2) empty vector lysate was used as a negative control.
Immunocytochemistry/ Immunofluorescence: GPIHBP1 Antibody [NB110-41537] - GPIHBP1 antibody was tested in A431 cells with FITC (green). Nuclei and alpha-tubulin were counterstained with DAPI (blue) and DyLight 550 (red).
Immunohistochemistry-Paraffin: GPIHBP1 Antibody [NB110-41537] - Analysis of FFPE mouse skeletal muscle using GPIHBP1 antibody at 1:50 on a Bond Rx autostainer (Leica Biosystems). The assay involved 20 minutes of heat more

Product Details

Reactivity Hu, Mu, Rt, BvSpecies Glossary
Applications WB, ChIP, Flow-CS, ICC/IF, IHC, IHC-P
0.6 mg/ml

GPIHBP1 Antibody Summary

A synthetic peptide corresponding to an internal region [within residues 100-170] of mouse GPIHBP1. [Swiss-Prot# Q9D1N2]
Plasma membrane.
Immunogen affinity purified
Innovator's Reward
Test in a species/application not listed above to receive a full credit towards a future purchase.


  • Western Blot 2 ug/ml
  • Chromatin Immunoprecipitation
  • Immunocytochemistry/Immunofluorescence 1:50-1:100
  • Immunohistochemistry 1:25 - 1:100
  • Immunohistochemistry-Paraffin 1:25 - 1:100
  • Flow (Cell Surface)
Application Notes
Use in Immunohistochemistry-Paraffin reported in scientific literature (PMID: 24735886). Use in chromatin immunoprecipitation reported in scientific literature (PMID: 28099936). Use in FLOW cell surface reported in scientific literature (PMID: 24735886).
Mouse Kidney Whole Tissue Lysate (Adult Whole Normal)
Control Peptide
GPIHBP1 Peptide (NB110-41537PEP)
Read Publications using
NB110-41537 in the following applications:

Reactivity Notes

Rat and Bovine reactivity reported in scientific literature (PMID: 24735886). Human reactivity reported in scientific literature (PMID: 28099936).

Packaging, Storage & Formulations

Aliquot and store at -20C or -80C. Avoid freeze-thaw cycles.
Tris-Glycine and 0.15M NaCl
0.05% Sodium Azide
0.6 mg/ml
Immunogen affinity purified

Alternate Names for GPIHBP1 Antibody

  • glycosylphosphatidylinositol anchored high density lipoprotein binding protein1
  • glycosylphosphatidylinositol-anchored high density lipoprotein-binding protein1
  • GPI anchored high density lipoprotein binding protein 1
  • GPI-Anchored HDL-Binding Protein 1
  • GPI-HBP1
  • GPI-HBP1LOC338328
  • HBP1
  • High density lipoprotein-binding protein 1
  • HYPL1D


GPIHBP1 (glycosylphosphatidylinositol-anchored HDL-binding protein 1) is a glycosylphosphatidylinositol-anchored glycoprotein of capillary endothelial cells that shuttle lipoprotein lipase (LPL) from the interstitial spaces to capillary lumen, and is essential for triglyceride-rich lipoproteins metabolism in mammalian plasma. GPIHBP1 is localized on luminal/abluminal capillary endothelial cell surfaces where it is bound by a glycosylphosphatidylinositol anchor and associates strongly with LPL. It serves as LPL transporter from sub-endothelial spaces to luminal face of capillaries, enabling lipolysis of circulating triglycerides localized within plasma chylomicrons. It has high affinity for HDL and binds to LPL, chylomicrons as well as APOA5. In the absence of GPIHBP1, the stores of catalytically active LPL within tissues are normal, but the LPL is mislocalized to interstitial spaces and is absent from capillary lumen. LPL mislocalization interferes with lipoprotein lipolysis and causes chylomicronemia. In humans, loss of function GPIHBP1 mutations leads to familial chylomicronemia. It binds LPL and apoA-V strongly for serving as a platform for lipolysis within capillaries, particularly in tissues which show high expression levels for both GPIHBP1 and LPL genes, such as heart, skeletal muscle and adipose tissue. Gpihbp1-/Gpihbp1- knock out mice have shown that GPIHBP1-deficiency causes severe hypertriglyceridemia.


This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.
