CD68/SR-D1 Antibody (SPM130) [Biotin]

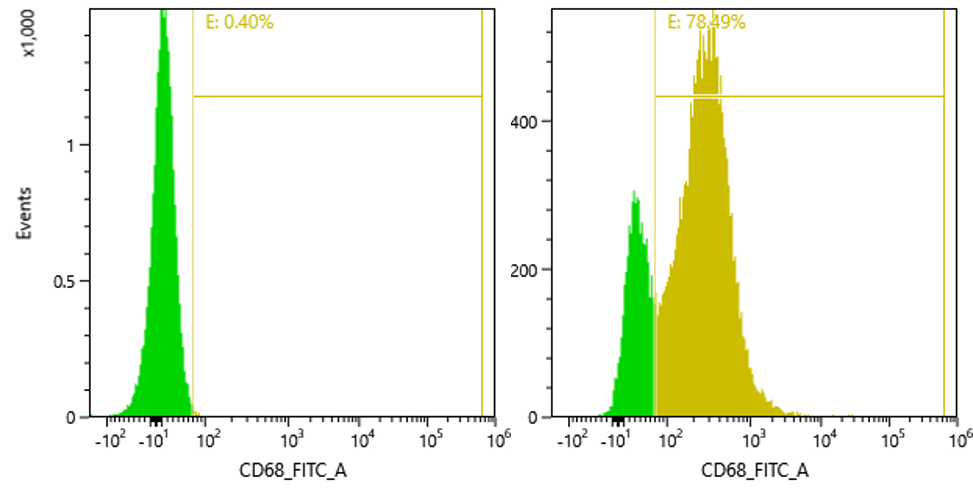

Flow Cytometry: CD68/SR-D1 Antibody (SPM130) [Biotin] [NBP2-34736B] - Mouse peripheral blood cells were unstained (left) or stained (right) with CD68/SR-D1 antibody and anti-biotin alexa-fluor 488 secondary antibody. Image from verified customer review.

• Reactivity: Hu, Fe, Pm, Rb, Ca(-), Ch(-), Po(-)
• Applications: Flow, ICC/IF, IHC, CyTOF-ready
• Clone: SPM130
• Clonality: Monoclonal
• Host: Mouse
• Conjugate: Biotin

CD68/SR-D1 Antibody (SPM130) [Biotin] Summary

• Description: This conjugate is made on demand and is not held in inventory. Each order represents a unique lot. All conjugates are generated using validated conjugation protocols and meet strict degree of labeling (F/P) specifications; additional information is available upon request. The antibody concentration is provided on the individual product label.

  For specialized conjugation needs, like large quantities, specific concentrations, and defined F/P ratios, bulk and custom antibody conjugation services are available.
• Immunogen: Subcellular fraction of human alveolar macrophages
• Localization: Cell Surface and Cytoplasmic
• Marker: Macrophage Marker
• Specificity: This antibody recognizes a glycoprotein of 110kDa, which is identified as CD68. It is important for identifying macrophages in tissue sections. It stains macrophages in a wide variety of human tissues, including Kupffer cells and macrophages in the red pulp of the spleen, in lamina propria of the gut, in lung alveoli, and in bone marrow. It reacts with myeloid precursors and peripheral blood granulocytes. It also reacts with plasmacytoid T cells, which are supposed to be of monocyte/macrophage origin. It shows strong granular cytoplasmic staining of chronic and acute myeloid leukemia and also reacts with rare cases of true histiocytic neoplasia. Lymphomas are negative or show few granules.
• Isotype: IgG1 Kappa
• Clonality: Monoclonal
• Host: Mouse
• Gene: CD68
• Purity: Protein A or G purified

Applications/Dilutions

• Dilutions:
  • CyTOF-ready
  • Flow Cytometry
  • Immunocytochemistry/ Immunofluorescence
  • Immunohistochemistry
  • Immunohistochemistry-Frozen
  • Immunohistochemistry-Paraffin
• Application Notes: Recommended applications are based on validated applications from the unconjugated base product NBP2-34736. This conjugated antibody is not kept in inventory and is made to order using validated conjugation protocols.
• Readout System:
  • Streptavidin Native Protein NBP2-29367

Reactivity Notes

Does not react with Porcine, Canine or Chicken.

Packaging, Storage & Formulations

• Storage: Store at 4C in the dark.
• Buffer: PBS
• Preservative: 0.05% Sodium Azide
• Purity: Protein A or G purified

Alternate Names for CD68/SR-D1 Antibody (SPM130) [Biotin]

• CD_antigen: CD68
• CD68 antigen
• CD68 molecule
• CD68
• DKFZp686M18236
• gp110
• LAMP4
• macrophage antigen CD68
• Macrosialin
• SCARD1
• scavenger receptor class D, member 1
• SRD1
• SR-D1

Background

Human CD68, also known as GP110, LAMP4, Scavenger Receptor D1 (SR-D1) or macrosialin in mouse, encodes a 110-kD transmembrane glycoprotein that belongs to the lysosomal/endosomal-associated membrane glycoprotein (LAMP) family. Members of the LAMP family include LAMP-1, LAMP-2, dendritic cell (DC)-LAMP (aka CD208), and brain and dendritic cell-associated (BAD)-LAMP (aka LAMP-5). Unlike the two LAMP domains facing the lysosomal lumen in LAMP-1 and LAMP-2, CD68 has a single LAMP domain containing four cystines spaced 36-37 residues apart along with an N-terminal Mucin-like domain. The 354 amino acid (a.a.) human CD68 and 326 a.a. murine ortholog share 80.6% a.a. sequence identity (1).

CD68 is highly expressed in cells of the mononuclear phagocyte system such as macrophages, microglia, osteoclasts, and myeloid dendritic cells (DCs); and is expressed to a lesser extent in lymphoid cells (CD19+ B lymphocytes and CD4+ T lymphocytes), human umbilical cord mesenchymal stem cells (MSCs), fibroblasts, endothelial cells, multiple non-hematopoietic cancer cell lines, and human arterial intimal smooth muscle cells (SMCs). Expression has been also observed in diseased states for granulocytes and neutrophils, in particular basophils from myeloproliferative disorders and intestinal neutrophils from inflammatory bowel disease (IBD), respectively (1).

Although the function of CD68 has yet to be established, it has often been used as an immunohistochemistry (IHC) marker of inflammation and for granular cell tumors (GCTs). CD68+ tumor associated macrophages (TAMs) has been suggested to be a predictive marker for poor cancer prognosis, but a meta-analysis showed the presence of CD68 is not correlated with survival (2). In addition, a role in hepatic malaria infection has been reported based on the finding that peptide P39 binds CD68, considered a receptor for malaria sporozoite, and inhibits parasite entry into Kupffer cells. CD68 was deemed a member of the Scavenger receptor family due to its upregulation in macrophages following inflammatory stimuli, ability to bind modified LDL, phosphatidylserine, and apoptotic cells, as well as shuttling between the plasma membrane and endosomes. CD68 has been linked to atherogenesis based on binding and internalization of its ligand, oxLDL (1).

References

1. Chistiakov, DA, Killingsworth, MC, Myasoedova, VA. Orekhov AN, Bobryshev YV. (2017) CD68/macrosialin: not just a histochemical marker. Lab Invest. 97:4-13. PMID: 27869795

2. Troiano G, Caponio VCA, Adipietro I, Tepedino M, Santoro R, Laino L, Lo Russo L, Cirillo N, Lo Muzio L. (2019) Prognostic significance of CD68+ and CD163+ tumor associated macrophages in head and neck squamous cell carcinoma: A systematic review and meta-analysis. Oral Oncol. 93:66-75. PMID: 31109698.

Limitations

This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.

Review for CD68/SR-D1 Antibody (NBP2-34736B) (1)

Average Rating: 5

(Based on 1 review)

We have 1 review tested in 1 species: Mouse.

reviewed by: Verified Customer Flow Mouse 07/24/2018

Summary

• Application: Flow Cytometry
• Sample Tested: Blood mononuclear cells (PBMCs)
• Species: Mouse
• Lot: 968-1XPABX170821-062518-B

Bioinformatics

• Gene Symbol: CD68
