CD68/SR-D1 Antibody (KP1) - BSA Free

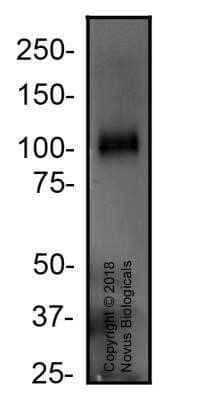

Western Blot: CD68/SR-D1 Antibody (KP1) [NBP2-76575] - Total protein from human spleen was separated on a 7.5% gel by SDS-PAGE, transferred to PVDF membrane and blocked in 5% non-fat milk in TBST. The membrane was probed with 1:50 anti-CD68 in 5% non-fat milk in TBST and detected with an anti-mouse HRP secondary antibody using chemiluminescence. Image using the standard format of this product.

Immunohistochemistry: CD68/SR-D1 Antibody (KP1) [NBP2-76575] - Analysis of a FFPE human spleen tissue section using 1:10 dilution of CD68/SR-D1 antibody (clone KP1) with HRP-DAB based detection method and hematoxylin counterstaining. The antibody specifically labelled the macrophage cells in the tested section. Image using the standard format of this product.

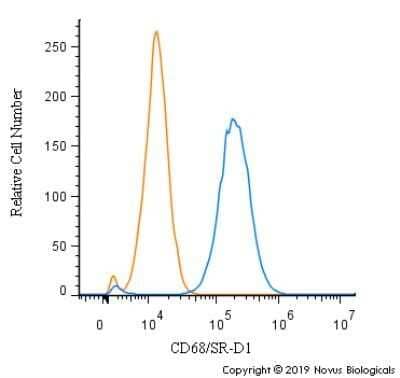

Flow Cytometry: CD68/SR-D1 Antibody (KP1) [NBP2-76575] - An intracellular stain was performed on THP-1 cells with CD68/SR-D1 Antibody NB100-683 (blue) and a matched isotype control (orange). Cells were fixed with 4% PFA and then permeabilized with 0.1% saponin. Cells were incubated in an antibody dilution of 1:50 for 30 minutes at room temperature, followed by Mouse IgG (H+L) Cross-Adsorbed Secondary Antibody. Image using the standard format of this product.

Product Discontinued

CD68/SR-D1 Antibody (KP1) - BSA Free Summary

• Immunogen: Subcellular fraction of human alveolar macrophages.
• Localization: Cell membrane
• Marker: Macrophage Marker
• Isotype: IgG1 Kappa
• Clonality: Monoclonal
• Host: Mouse
• Gene: CD68
• Purity: Protein A or G purified

Applications/Dilutions

• Dilutions:
  • Flow Cytometry
  • Immunocytochemistry/ Immunofluorescence
  • Immunohistochemistry
  • Immunohistochemistry-Frozen
  • Immunohistochemistry-Paraffin
  • Immunoprecipitation
  • Western Blot 2 ug/ml
• Application Notes: This CD68 Antibody (KP1) is useful for Immunohistochemistry on frozen fixed and paraffin-emdedded sections, Immunoprecipitation, Western blot and ICC/IF. IHC: For an ABC system, dilute 1:20 and incubate for 30-60 minutes at RT. Formalin fixed paraffin embedded tissue sections require high temperature antigen unmasking with 10 mM citrate buffer, pH 6.0 prior to immunostaining. Use in Flow Cytometry reported in scientific literature (PMID: 18405323)

Reactivity Notes

Rat reactivity reported in scientific literature (PMID: 25058444)

Packaging, Storage & Formulations

• Storage: Store at 4C. Do not freeze.
• Buffer: PBS
• Preservative: 0.02% Sodium Azide
• Concentration: 1.0 mg/ml
• Purity: Protein A or G purified

Alternate Names for CD68/SR-D1 Antibody (KP1) - BSA Free

• CD_antigen: CD68
• CD68 antigen
• CD68 molecule
• CD68
• DKFZp686M18236
• gp110
• LAMP4
• macrophage antigen CD68
• Macrosialin
• SCARD1
• scavenger receptor class D, member 1
• SRD1
• SR-D1

Background

Human CD68, also known as GP110, LAMP4, Scavenger Receptor D1 (SR-D1) or macrosialin in mouse, encodes a 110-kD transmembrane glycoprotein that belongs to the lysosomal/endosomal-associated membrane glycoprotein (LAMP) family. Members of the LAMP family include LAMP-1, LAMP-2, dendritic cell (DC)-LAMP (aka CD208), and brain and dendritic cell-associated (BAD)-LAMP (aka LAMP-5). Unlike the two LAMP domains facing the lysosomal lumen in LAMP-1 and LAMP-2, CD68 has a single LAMP domain containing four cystines spaced 36-37 residues apart along with an N-terminal Mucin-like domain. The 354 amino acid (a.a.) human CD68 and 326 a.a. murine ortholog share 80.6% a.a. sequence identity (1).

CD68 is highly expressed in cells of the mononuclear phagocyte system such as macrophages, microglia, osteoclasts, and myeloid dendritic cells (DCs); and is expressed to a lesser extent in lymphoid cells (CD19+ B lymphocytes and CD4+ T lymphocytes), human umbilical cord mesenchymal stem cells (MSCs), fibroblasts, endothelial cells, multiple non-hematopoietic cancer cell lines, and human arterial intimal smooth muscle cells (SMCs). Expression has been also observed in diseased states for granulocytes and neutrophils, in particular basophils from myeloproliferative disorders and intestinal neutrophils from inflammatory bowel disease (IBD), respectively (1).

Although the function of CD68 has yet to be established, it has often been used as an immunohistochemistry (IHC) marker of inflammation and for granular cell tumors (GCTs). CD68+ tumor associated macrophages (TAMs) has been suggested to be a predictive marker for poor cancer prognosis, but a meta-analysis showed the presence of CD68 is not correlated with survival (2). In addition, a role in hepatic malaria infection has been reported based on the finding that peptide P39 binds CD68, considered a receptor for malaria sporozoite, and inhibits parasite entry into Kupffer cells. CD68 was deemed a member of the Scavenger receptor family due to its upregulation in macrophages following inflammatory stimuli, ability to bind modified LDL, phosphatidylserine, and apoptotic cells, as well as shuttling between the plasma membrane and endosomes. CD68 has been linked to atherogenesis based on binding and internalization of its ligand, oxLDL (1).

References

1. Chistiakov, DA, Killingsworth, MC, Myasoedova, VA. Orekhov AN, Bobryshev YV. (2017) CD68/macrosialin: not just a histochemical marker. Lab Invest. 97:4-13. PMID: 27869795

2. Troiano G, Caponio VCA, Adipietro I, Tepedino M, Santoro R, Laino L, Lo Russo L, Cirillo N, Lo Muzio L. (2019) Prognostic significance of CD68+ and CD163+ tumor associated macrophages in head and neck squamous cell carcinoma: A systematic review and meta-analysis. Oral Oncol. 93:66-75. PMID: 31109698.

Limitations

This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.

Bioinformatics

• Gene Symbol: CD68
