Human Granzyme B ELISA Kit (Colorimetric)

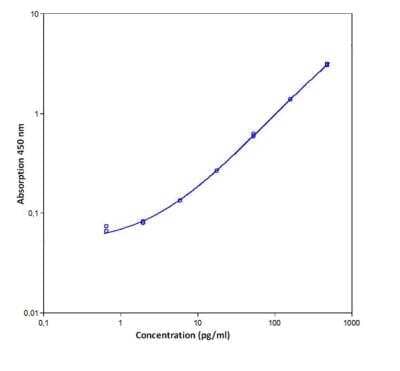

ELISA: Granzyme B ELISA Kit [NBP1-83736] - Standard curve

Product Details

Reactivity HuSpecies Glossary
Applications ELISA
Suitable Sample Type
Cell culture supernatant, serum
Standard Curve Range
0.66 - 480 pg/mL
0.2 pg/mL

Order Details

Human Granzyme B ELISA Kit (Colorimetric) Summary

The interference of other proteinases was evaluated by spiking these enzymes into a human Granzyme B positive serum. There was no crossreactivity detected, namely not with Proteinase 2 (PR3), Tryptase, Cathepsin G (Cath G), Granzyme A, Human Neutrophil Elastase (HNE), Trypsin, Chymotrypsin.
Standard Curve Range
0.66 - 480 pg/mL
0.2 pg/mL
Assay Type
Sandwich ELISA
Spike Recovery
The amount of endogenous human Granzyme B in unspiked serum was substracted from the spike values. The overall mean recovery was 117%.
Sample Volume
50 uL
Kit Type
ELISA Kit (Colorimetric)


Application Notes
This kit is an enzyme-linked immunosorbent assay for quantitative detection.

Reactivity Notes


Packaging, Storage & Formulations

Storage of components varies. See protocol for specific instructions.

Kit Components

  1. Dilution Buffer Concentrate 5x
  2. Biotin-Conjugate anti-human Granzyme B monoclonal antibody
  3. Adhesive Films
  4. Aluminium pouch(es) with a Microwell Plate coated with monoclonal antibody to human Granzyme B
  5. Streptavidin-HRP
  6. Stop Solution (1M Phosphoric acid)
  7. Human Granzyme B Standard lyophilized, 960 pg/mL upon reconstitution
  8. Substrate Solution (tetramethyl-benzidine)
  9. Wash Buffer Concentrate 20x (PBS with 1% Tween 20)

Alternate Names for Human Granzyme B ELISA Kit (Colorimetric)

  • C11
  • CCPI
  • CGL1
  • CGL-1
  • CSPB
  • CSP-B
  • CTLA1
  • CTLA-1
  • CTSGL1
  • Fragmentin-2
  • Granzyme B
  • Granzyme-2
  • GRB
  • GrzB
  • GZMB
  • HLP
  • SECT


Granzymes are exogenous serine proteinases (enzymes) that are released from cytoplasmic granules of cytotoxic lymphocytes (CTLs) and NK cells. The name "granzymes" is derived from: granules + enzymes. These granules contain next to granzymes other proteins including a poreforming protein (Perforin). Upon binding of the CTL to a target cell (by CTL-receptor and antigen-presenting MHC molecules on the target cell) the contents of the granules are released in the intercellular space where after perforine will "perforate" the target cell membrane by forming transmembrane pores. Through these pores the granzymes can now enter the cytosol of the target cell. Granzyme B activates the intracellular cascade of caspases finally resulting in the killing of the target cells. Percentages of the Granzyme A and B positive CTLs can be determined by flow cytometry and immunocytochemical methods for many disorders. Not all granzymes enter the target cell, part of them also "leak" in to the peripheral blood and other biological fluids. Detectable amounts of granzymes have been found to circulate in healthy volunteers. These soluble granzymes can be measured by ELISAs.


This product is for research use only and is not approved for use in humans or in clinical diagnosis. ELISA Kits are guaranteed for 6 months from date of receipt.
