GM-CSFR alpha Antibody (698423) [Unconjugated]

Images


GM‑CSF R alpha was detected in immersion fixed J774A.1 mouse reticulum cell sarcoma macrophage cell line using Rat Anti-Mouse GM‑CSF R alpha Mono­clonal Antibody (Catalog # MAB6130) at 10 µg/mL for 3 hours at ...read more

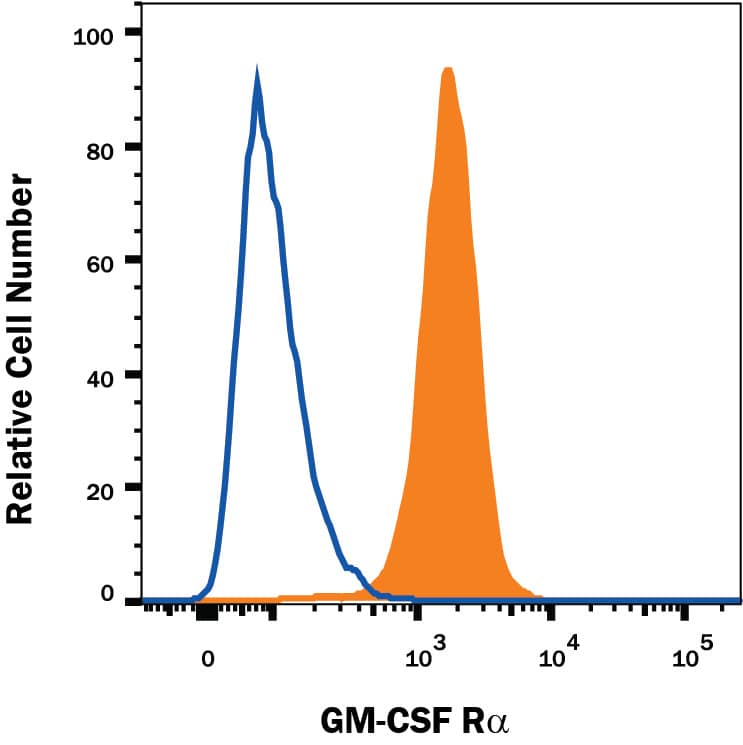

J774A.1 mouse reticulum cell sarcoma macrophage cell line was stained with Rat Anti-Mouse GM‑CSF R alpha Monoclonal Antibody (Catalog # MAB6130, filled histo­gram) or isotype control antibody (Catalog # MAB006, ...read more

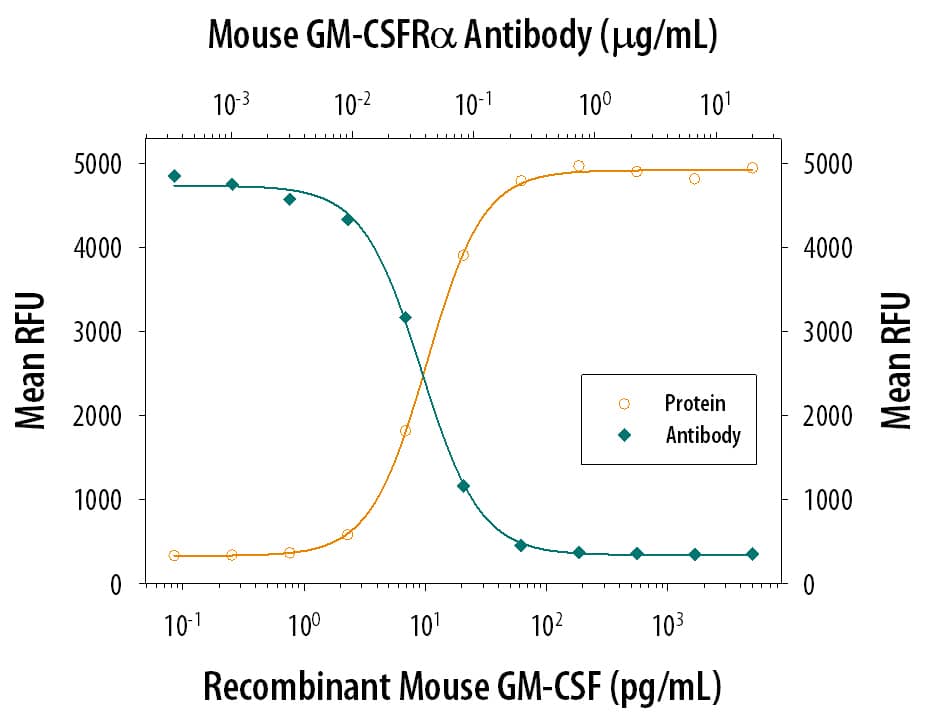

Recombinant Mouse GM‑CSF (Catalog # 415-ML) stimulates proliferation in the DA3 mouse myeloma cell line in a dose-dependent manner (orange line). Proliferation elicited by Recombinant Mouse GM‑CSF (0.1 ng/mL) is ...read more

Product Details

Summary
Reactivity MuSpecies Glossary
Applications Flow, B/N, CyTOF-ready, ICC/IF
Clone
698423
Clonality
Monoclonal
Host
Rat
Conjugate
Unconjugated

GM-CSFR alpha Antibody (698423) [Unconjugated] Summary

Immunogen
Mouse myeloma cell line NS0-derived recombinant mouse GM-CSF R alpha
Leu30-Pro327
Accession # Q00941
Specificity
Detects mouse GM-CSF R alpha in direct ELISAs. In direct ELISAs, no cross-reactivity with recombinant human (rh) GM-CSF R alpha or
rhGM-CSF R beta is observed.
Source
N/A
Isotype
IgG2a
Clonality
Monoclonal
Host
Rat
Gene
CSF2RA
Purity
Protein A or G purified from hybridoma culture supernatant
Endotoxin Note
<0.10 EU per 1 μg of the antibody by the LAL method.
Innovator's Reward
Test in a species/application not listed above to receive a full credit towards a future purchase.

Applications/Dilutions

Dilutions
  • Flow Cytometry 0.25 ug/10^6 cells
  • CyTOF-ready
  • Immunocytochemistry 8-25 ug/mL
  • Neutralization 0.02-0.12 ug/mL
Publications
Read Publications using
MAB6130 in the following applications:

Packaging, Storage & Formulations

Storage
Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 6 months, -20 to -70 °C under sterile conditions after reconstitution.
Buffer
Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied as a 0.2 µm filtered solution in PBS.
Preservative
No Preservative
Purity
Protein A or G purified from hybridoma culture supernatant
Reconstitution Instructions
Sterile PBS to a final concentration of 0.5 mg/mL.

Notes

This product is produced by and ships from R&D Systems, Inc., a Bio-Techne brand.

Alternate Names for GM-CSFR alpha Antibody (698423) [Unconjugated]

  • CD116 antigen
  • CD116
  • CDw116
  • colony stimulating factor 2 receptor alpha subunit
  • colony stimulating factor 2 receptor, alpha, low-affinity(granulocyte-macrophage)
  • CSF2R
  • CSF2RA
  • CSF2RAX
  • CSF2RAY
  • CSF2RX
  • CSF2RY
  • GM-CSF R alpha
  • GM-CSF receptor alpha subunit
  • GMCSFR alpha
  • GMCSFR
  • GM-CSFRa
  • GM-CSF-R-alpha
  • GMCSFR-alpha
  • GMR
  • GMR-alpha
  • granulocyte-macrophage colony-stimulating factor receptor alpha chain
  • granulocyte-macrophage colony-stimulating factor receptor subunit alpha
  • MGC3848
  • MGC4838

Background

Granulocyte macrophage colony stimulating factor receptor alpha (GM-CSF R alpha ), also known as CD116, is a component of the receptor complex that mediates cellular responses to GM-CSF. GM-CSF promotes the differentiation and mobilization of granulocyte-macrophage, erythroid, megakaryocyte, and eosinophil progenitors. It enhances the activation of myeloid cell effector functions and plays a role in the development of Th1 biased immune responses, allergic inflammation, and autoimmunity (1-4). Mature mouse GM-CSF R alpha is an 80 kDa type I transmembrane glycoprotein that consists of a 298 amino acid (aa) extracellular domain (ECD) with two fibronectin type III domains and a juxtamembrane WSXWS motif, a 21 aa transmembrane segment, and a 40 aa cytoplasmic domain (5). Within the ECD, mouse GM-CSF R alpha shares approximately 33% and 58% aa sequence identity with human and rat GM-CSF R alpha, respectively. Soluble forms of the human receptor retain the ability to bind GM-CSF (6, 7). GM-CSF R alpha is expressed on hematopoietic stem cells, progenitor and differentiated cells in the myeloid lineage, vascular endothelial cells, placenta, and non‑hematopoietic solid tumor cells (8). GM-CSF R alpha associates with the common beta chain/CD131 ( beta c), a 135 kDa transmembrane protein that is also the signal transducing component of the receptors for IL-3 and IL-5 (9, 10). Association with beta c converts GM-CSF R alpha from a low affinity to a high affinity receptor for GM-CSF (9-11). The shared usage of beta c underlies the synergism between GM-CSF, IL-3, and IL-5 in their effects on myeloid cell differentiation and activation (1, 2).

  1. Martinez-Moczygemba, M. and D.P. Huston (2003) J. Allergy Clin. Immunol. 112:653.
  2. Fleetwood, A.J. et al. (2005) Crit. Rev. Immunol. 25:405.
  3. Eksioglu, E.A. et al. (2007) Exp. Hematol. 35:1163.
  4. Cao, Y. (2007) J. Clin. Invest. 117:2362.
  5. Park, L.S. et al. (1992) Proc. Natl. Acad. Sci. 89:4295.
  6. Pelley, J.L. et al. (2007) Exp. Hematol. 35:1483.
  7. Raines, M.A. et al. (1991) Proc. Natl. Acad. Sci. 88:8203.
  8. Chiba, S. et al. (1990) Cell Regul. 1:327.
  9. Kitamura, T. et al. (1991) Proc. Natl. Acad. Sci. 88:5082.
  10. Hayashida, K. et al. (1990) Proc. Natl. Acad. Sci. 87:9655.
  11. Hoang, T. et al. (1993) J. Biol. Chem. 268:11881.

Limitations

This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.
