PTP1B/PTPN1 Antibody (JJ0935)

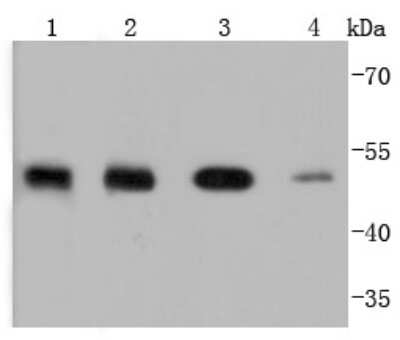

Western Blot: PTP1B/PTPN1 Antibody (JJ0935) [NBP2-67918] - Analysis of PTP1B on different lysates using anti-PTP1B antibody at 1/1,000 dilution. Positive control: Lane 1: zebrafish Lane 2: MCF-7 Lane 3: HepG2 Lane 4: A431

Immunocytochemistry/Immunofluorescence: PTP1B/PTPN1 Antibody (JJ0935) [NBP2-67918] - Staining PTP1B in MCF-7 cells (green). The nuclear counter stain is DAPI (blue). Cells were fixed in paraformaldehyde, permeabilised with 0.25% Triton X100/PBS.

Immunohistochemistry-Paraffin: PTP1B/PTPN1 Antibody (JJ0935) [NBP2-67918] - Analysis of paraffin-embedded human tonsil tissue using anti-PTP1B antibody. Counter stained with hematoxylin.

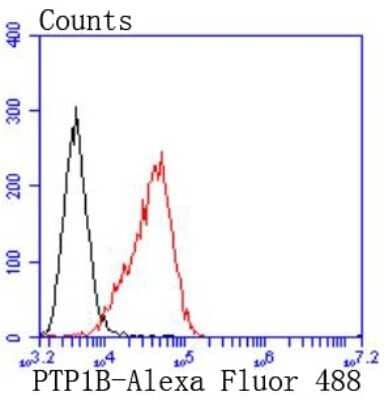

Flow Cytometry: PTP1B/PTPN1 Antibody (JJ0935) [NBP2-67918] - Analysis of Raji cells with PTP1B antibody at 1/50 dilution (red) compared with an unlabelled control (cells without incubation with primary antibody; black). Alexa Fluor 488-conjugated goat anti rabbit IgG was used as the secondary antibody

Immunocytochemistry/Immunofluorescence: PTP1B/PTPN1 Antibody (JJ0935) [NBP2-67918] - Staining PTP1B in Hela cells (green). The nuclear counter stain is DAPI (blue). Cells were fixed in paraformaldehyde, permeabilised with 0.25% Triton X100/PBS.

Immunocytochemistry/Immunofluorescence: PTP1B/PTPN1 Antibody (JJ0935) [NBP2-67918] - Staining PTP1B in HepG2 cells (green). The nuclear counter stain is DAPI (blue). Cells were fixed in paraformaldehyde, permeabilised with 0.25% Triton X100/PBS.

Product Discontinued

PTP1B/PTPN1 Antibody (JJ0935) Summary

• Additional Information: Recombinant Monoclonal Antibody.
• Immunogen: Synthetic peptide within Human PTP1B/PTPN1 aa 374-400 / 435. (SwissProt: P18031 Human)
• Localization: Endoplasmic reticulum membrane.
• Isotype: IgG
• Clonality: Monoclonal
• Host: Rabbit
• Gene: PTPN1
• Purity: Protein A purified

Applications/Dilutions

• Dilutions:
  • Flow Cytometry 1:50-1:100
  • Immunocytochemistry/ Immunofluorescence 1:100-1:500
  • Immunohistochemistry
  • Immunohistochemistry-Paraffin 1:50-1:200
  • Western Blot 1:1000-1:2000

Packaging, Storage & Formulations

• Storage: Store at 4C short term. Aliquot and store at -20C long term. Avoid freeze-thaw cycles.
• Buffer: TBS (pH7.4), 0.05% BSA, 40% Glycerol
• Preservative: 0.05% Sodium Azide
• Concentration: 1 mg/ml
• Purity: Protein A purified

Alternate Names for PTP1B/PTPN1 Antibody (JJ0935)

• EC 3.1.3.48
• protein tyrosine phosphatase 1B
• protein tyrosine phosphatase, non-receptor type 1
• Protein-tyrosine phosphatase 1B
• PTP1B
• PTP-1B
• PTP1Bprotein tyrosine phosphatase, placental
• PTPN1
• tyrosine-protein phosphatase non-receptor type 1

Background

The non-transmembrane protein tyrosine phosphatase, PTP1B, comprises 435 amino acids, of which the C-terminal 114 residues have been implicated in controlling both localization and function of this enzyme. Increased phosphorylation of PTP1B is seen to accompany the transition from G2 to M phase of the cell cycle. Immunofluorescence experiments indicate that PTP-1B is localized predominantly in the endoplasmic reticulum (ER). Subcellular fractionation is consistent with this localization and establishes that PTP-1B is tightly associated with microsomal membranes, with its phosphatase domain oriented towards the cytoplasm. The finding of a tyrosine phosphatase on the ER suggests new possibilities for cellular events controlled by tyrosine phosphorylation (2). It has also been shown that PTP1B is a novel substrate for Akt and that phosphorylation of PTP1B by Akt at Ser(50) may negatively modulate its phosphatase activity creating a positive feedback mechanism for insulin signaling (3).

Limitations

This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.

Bioinformatics

• Gene Symbol: PTPN1
