Bax inhibitor 1 Antibody (20F248)

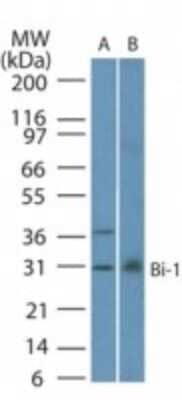

Western Blot: Bax inhibitor 1 Antibody (20F248) [NBP2-24949] - Analysis of Bi-1 in A) A549 and B) human lung lysate using this antibody at 1:1000.

Immunocytochemistry/Immunofluorescence: Bax inhibitor 1 Antibody (20F248) [NBP2-24949] - HeLa cells were fixed for 10 minutes using 10% formalin and then permeabilized for 5 minutes using 1X TBS + 0.5% Triton-X100. The cells were incubated with anti Bax inhibitor 1 (20F248), NBP2-24949, at a 1:200 dilution overnight at 4C and detected with an anti-mouse IgM Dylight 488 (Green) at a 1:500 dilution. Actin was detected with Phalloidin 568 (Red) at a 1:200 dilution. Nuclei were counterstained with DAPI (Blue). Cells were imaged using a 40X objective.

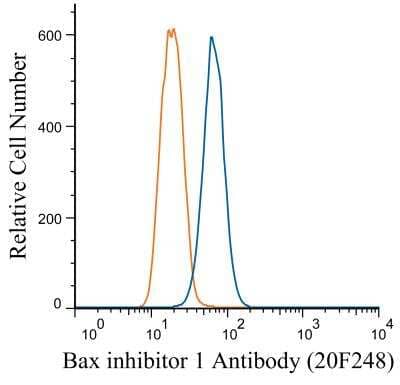

Flow (Intracellular): Bax inhibitor 1 Antibody (20F248) [NBP2-24949] - An intracellular stain was performed on THP-1 cells with Bax Inhibitor 1 (20F248) NBP2-24949 (blue) and a matched isotype control NBP2-27284 (orange). Cells were fixed with 4% PFA and then permeablized with 0.1% saponin. Cells were incubated in an antibody dilution of 1 ug/mL for 30 minutes at room temperature, followed by Dylight488-conjugated anti-mouse secondary antibody.

Product Discontinued

Bax inhibitor 1 Antibody (20F248) Summary

• Immunogen: A synthetic peptide made to the N-terminal portion of the human Bax inhibitor 1 protein (between amino acids 1-40) UniProt P55061.
• Epitope: Epitope mapping indicates that the antibody recognizes an epitope in the N-terminal region of Bax inhibitor 1.
• Isotype: IgM
• Clonality: Monoclonal
• Host: Mouse
• Gene: TMBIM6
• Purity: IgM purified

Applications/Dilutions

• Dilutions:
  • CyTOF-ready
  • Flow (Intracellular)
  • Flow Cytometry 1 ug/mL
  • Immunocytochemistry/ Immunofluorescence 1:200
  • Western Blot 1:500-1: 1000
• Application Notes: This antibody is Cytof ready.

Packaging, Storage & Formulations

• Storage: Store at 4C short term. Aliquot and store at -20C long term. Avoid freeze-thaw cycles.
• Buffer: PBS
• Preservative: 0.05% Sodium Azide
• Concentration: 1.0 mg/ml
• Purity: IgM purified

Alternate Names for Bax inhibitor 1 Antibody (20F248)

• BAXI1
• BI1
• BI-1Transmembrane BAX inhibitor motif-containing protein 6
• TEGTbax inhibitor 1
• testis enhanced gene transcript
• Testis-enhanced gene transcript protein
• transmembrane BAX inhibitor motif containing 6

Limitations

This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.

Bioinformatics

• Gene Symbol: TMBIM6
• Entrez:
  • 7009(Human)
• Uniprot:
  • P55061(Human)
