EGLN1/PHD2 Antibody

Images

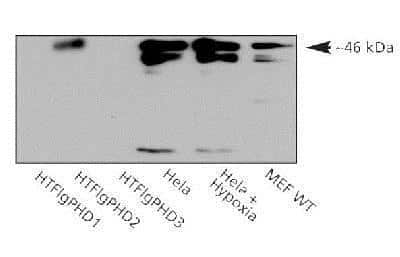

Western Blot: EGLN1/PHD2 Antibody [NB100-138] - Analysis of human PHD2, using NB100-138. Samples: Recombinant FLAG-His-PHD1, PHD2 and PHD3 (10 ng/lane), HeLa whole cell lysate and MEFs.

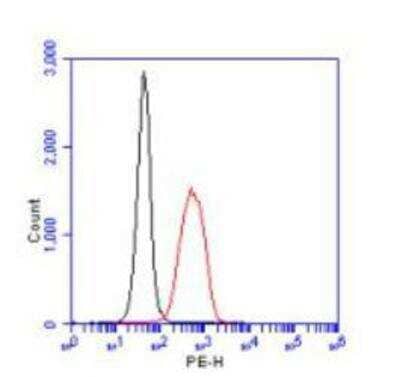

Flow Cytometry: EGLN1/PHD2 Antibody [NB100-138] - Flow cytometric detection of PHD2, 10^6 Jurkat cells were fixed, permeabilized, and stained with 3.0 ug/mL anti-PHD2 in a 150 uL reaction.

Product Details

Summary
Product Discontinued
View other related EGLN1/PHD2 Primary Antibodies

Order Details


    • Catalog Number
      NB100-138
    • Availability
      Product Discontinued

    Can't find what you are looking for? Use our Antibody Concierge Service & we will help you locate your antibody!

    Or feel free to contact us for alternative products.

EGLN1/PHD2 Antibody Summary

Immunogen
This EGLN1/PHD2 antibody was developed against a synthetic peptide corresponding to a C-terminal portion of human PHD2/HIF Prolyl Hydroxylase 2 (between amino acids 350-426) (GeneID 54583).
Isotype
IgG
Clonality
Polyclonal
Host
Rabbit
Gene
EGLN1
Purity
Immunogen affinity purified
Innovator's Reward
Test in a species/application not listed above to receive a full credit towards a future purchase.

Applications/Dilutions

Dilutions
  • Electron Microscopy
  • Flow Cytometry 1:10 - 1:1000
  • Immunocytochemistry/ Immunofluorescence
  • Immunohistochemistry
  • Immunohistochemistry-Paraffin
  • Immunoprecipitation
  • Knockdown Validated
  • Western Blot 1:500 - 1:2500
Application Notes
This PHD2/HIF Prolyl Hydroxylase 2 antibody is useful for Flow Cytometry and Western blot, where a band can be seen at 46-50 kDa. Immunoprecipitation and Immunohistochemistry were reported in scientific literature. Use in Immunocytochemistry/immunofluorescence, Immunohistochemistry-Paraffin and Electron Microscopy reported in scientific literature (PMID: 17003483). The observed molecular weight of the protein may vary from the listed predicted molecular weight due to post translational modifications, post translation cleavages, relative charges, and other experimental factors.
Theoretical MW
46 kDa.
Disclaimer note: The observed molecular weight of the protein may vary from the listed predicted molecular weight due to post translational modifications, post translation cleavages, relative charges, and other experimental factors.
Control
EGLN1/PHD2 Overexpression Lysate
Reviewed Applications
Read 1 Review rated 4
using
NB100-138 in the following applications:

Publications
Read Publications using
NB100-138 in the following applications:

  • EM
    1 publication
  • 1 publication
  • 2 publications
  • 1 publication
  • IP
    2 publications
  • WB
    2 publications

Reactivity Notes

Does not appear to work in mouse. Rat reactivity reported in scientific literature (PMID: 17003483).

Packaging, Storage & Formulations

Storage
Store at 4C. Do not freeze.
Buffer
Tris-Citrate/Phosphate (pH 7 - 8)
Preservative
0.09% Sodium Azide
Concentration
1 mg/ml
Purity
Immunogen affinity purified

Alternate Names for EGLN1/PHD2 Antibody

  • C1orf12
  • EC 1.14.11.29
  • EC:1.14.11.291
  • ECYT3
  • egl nine homolog 1
  • egl nine-like protein 1
  • EGLN1
  • HALAH
  • HIF prolyl hydroxylase 2
  • HIFPH2
  • HIF-PH2
  • HIF-prolyl hydroxylase 2
  • HPH2
  • HPH-2
  • Hypoxia-inducible factor prolyl hydroxylase 2
  • PHD2
  • PNAS-118
  • PNAS-137
  • Prolyl hydroxylase domain-containing protein 2
  • SM20
  • SM-20
  • zinc finger MYND domain-containing protein 6
  • ZMYND6

Background

PHD2 (Prolyl Hydroxylase Domain-containing protein 2) belongs to the Prolyl-4-hydroxylase domain (PHD) family of proteins and is encoded by the Egl-9 Family Hypoxia Inducible Factor 1 (EGLN1) gene (1). Human EGLN1/PHD2 is a ubiquitously expressed enzyme that is 426 amino acids (aa) long with a theoretical molecular weight of ~46 kDa. Structurally PHD2 contains a nuclear export signal (NES, aa 6-20), an N-terminal MYND zinc finger domain (aa 21-58), and a C-terminal catalytic domain (aa 291-392) (2, 3). Functionally, PHD2 serves as an oxygen sensor and is responsible for post-translational modification of Hypoxia-inducible factor alpha (HIF-1alpha), a component of a transcriptional complex involved in oxygen homeostasis (1-3). During normoxia, PHD2 is responsible for oxygen-dependent hydroxylation of HIF-1alpha proline residue 402, 564, or both (3). The hydroxylation event promotes the binding of von Hippel-Lindau protein (VHL) and targets HIF1-alpha for ubiquitination and degradation (4, 5).

EGLN1/PHD2 has been implicated in several critical processes including erythropoiesis, angiogenesis, and metabolism as well as various pathologies such as cancer (2, 5, 6). Studies in mice have found that somatic deletion of PHD2 resulted in higher vascular endothelial growth factor A (VEGF-A) levels, increased blood vessel formation, and more erythropoietin (EPO), leading to severe polycythemia or erythrocytosis (high red blood cell (RBC) volume) (6). Another study revealed that specific point mutations in EGLN1/PHD2 led to elevated EPO and RBC mass associated with hemorrhages and strokes (6). Accordingly, given the known role of PHD2 in inhibition of EPO production, PHD2 inhibitors are being studied as a potential therapeutic for anemia (6). Additionally, dysregulation in EGLN1, and specifically the PHD2-VHL-HIF-1alpha pathway, has been associated with the development of pheochromocytomas (PCC) and sympathetic paragangliomas (PGL), which are rare neuroendocrine tumors (2). Besides pathological features, EGLN1/PHD2 may also be important for high altitude adaptation as two coding sequence variants in PHD2 are prevalent in the Tibetan population but is very rare in people at lower altitudes (2).

Alternate names for EGLN1/PHD2 include HIF Prolyl Hydroxylase 2, PH2, Prolyl hydroxylase domain containing protein 2, HIF2PH2, HIF-Prolyl hydroxylase 2, egl nine homolog 1, and C1orf12.

References

1. Amorim-Pires, D., Peixoto, J., & Lima, J. (2016). Hypoxia Pathway Mutations in Pheochromocytomas and Paragangliomas. Cytogenetic and genome research. https://doi.org/10.1159/000457479

2. Gardie, B., Percy, M. J., Hoogewijs, D., Chowdhury, R., Bento, C., Arsenault, P. R., Richard, S., Almeida, H., Ewing, J., Lambert, F., McMullin, M. F., Schofield, C. J., & Lee, F. S. (2014). The role of PHD2 mutations in the pathogenesis of erythrocytosis. Hypoxia (Auckland, N.Z.). https://doi.org/10.2147/HP.S54455

3. Minervini, G., Quaglia, F., & Tosatto, S. C. (2015). Insights into the proline hydroxylase (PHD) family, molecular evolution and its impact on human health. Biochimie. https://doi.org/10.1016/j.biochi.2015.07.009

4. Semenza G. L. (2007). Hypoxia-inducible factor 1 (HIF-1) pathway. Science's STKE : signal transduction knowledge environment. https://doi.org/10.1126/stke.4072007cm8

5. Chan, D. A., & Giaccia, A. J. (2010). PHD2 in tumour angiogenesis. British journal of cancer. https://doi.org/10.1038/sj.bjc.6605682

6. Meneses, A. M., & Wielockx, B. (2016). PHD2: from hypoxia regulation to disease progression. Hypoxia (Auckland, N.Z.). https://doi.org/10.2147/HP.S53576

Limitations

This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.
