LAG-3 Antibody (631501) [Phycoerythrin]

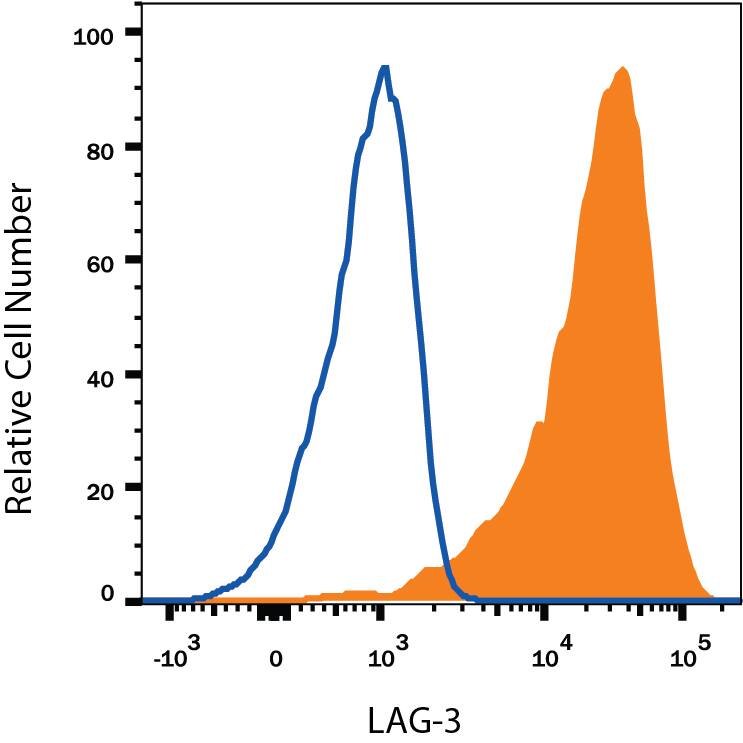

Mouse splenocytes treated with PMA and Calcium Ionomycin for 3 days were stained with Rat Anti-Mouse LAG-3 PE-conjugated Monoclonal Antibody (Catalog # FAB33281P, filled histogram) or isotype control antibody (IC013P, open histogram). View our protocol for Staining Membrane-associated Proteins.

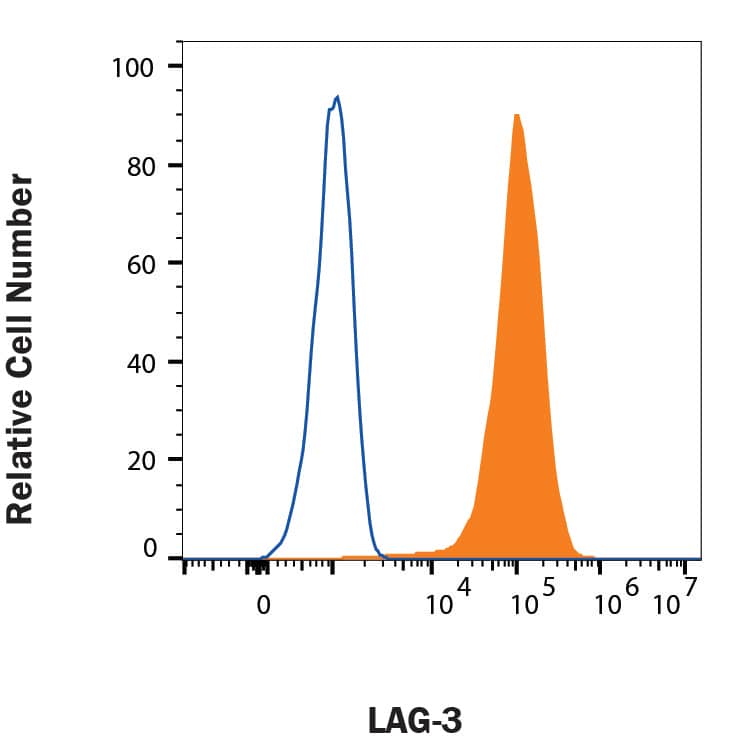

CTLL‑2 mouse cytotoxic T cell line were stained with Rat Anti-Mouse LAG‑3 PE‑conjugated Monoclonal Antibody (Catalog # FAB33281P, filled histogram) or isotype control antibody (Catalog # IC013P, open histogram). View our protocol for Staining Membrane-associated Proteins.

• Reactivity: Mu
• Applications: Flow
• Clone: 631501
• Clonality: Monoclonal
• Host: Rat
• Conjugate: Phycoerythrin

LAG-3 Antibody (631501) [Phycoerythrin] Summary

• Immunogen: NS0 mouse myeloma cell line transfected with mouse LAG-3
  Ser23-Leu442
  Accession # Q61790
• Specificity: Detects mouse LAG-3 in direct ELISAs. In direct ELISAs, no cross-reactivity with recombinant human LAG-3 is observed.
• Source: N/A
• Isotype: IgG2b
• Clonality: Monoclonal
• Host: Rat
• Gene: LAG3
• Purity Statement: Protein A or G purified from hybridoma culture supernatant

Applications/Dilutions

• Dilutions:
  • Flow Cytometry 0.25-1 ug/10^6 cells

Packaging, Storage & Formulations

• Storage: Protect from light. Do not freeze.
  • 12 months from date of receipt, 2 to 8 °C as supplied.
• Buffer: Supplied in a saline solution containing BSA and Sodium Azide.
• Preservative: Sodium Azide

Notes

This product is produced by and ships from R&D Systems, Inc., a Bio-Techne brand.

Alternate Names for LAG-3 Antibody (631501) [Phycoerythrin]

• CD223 antigen
• CD223
• LAG3
• LAG-3
• lymphocyte activating 3
• lymphocyte activation gene 3 protein
• lymphocyte-activation gene 3
• Secreted lymphocyte activation gene 3 protein
• sLAG-3

Background

LAG-3 (Lymphocyte activation gene-3; also known as CD223 in the human) is a member of the immunoglobulin superfamily (IgSF). The mature LAG-3 protein is a 496 amino acid (aa) membrane protein with a 421 aa extracellular region which contains four IgSF domains, a 21 aa transmembrane region and a 54 aa cytoplasmic region. LAG-3 shares < 20% amino acid sequence homology with CD4, but has similar structure and binds to MHC class II with higher affinity.  The mouse LAG-3 extracellular region shares 69% aa sequence identity with human LAG-3.

Limitations

This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.

FAQs for LAG-3 Antibody (FAB33281P). (Showing 1 - 2 of 2 FAQ).

1. Can this LAG-3 antibody be used in ELISA?
   • We have not validated this particular LAG-3 antibody for ELISA in mouse; however, it has been cited as being used as a detection antibody in a publicatoin (PMID 15946792).
2. I'm using your LAG-3 antibody in western blot but the observed band is a different size than the predicted band size, do you know what the bands are?
   • There are several alternative splice varients of LAG-3 that could explain the different sized proteins stained by the LAG-3 antibody. It is also believed that there are two secreted forms of LAG-3, one that is about 36 kDa and another at 52 kDa.

Bioinformatics

• Gene Symbol: LAG3
• Uniprot:
  • Q61790()
