VISTA/B7-H5/PD-1H Antibody [Allophycocyanin]

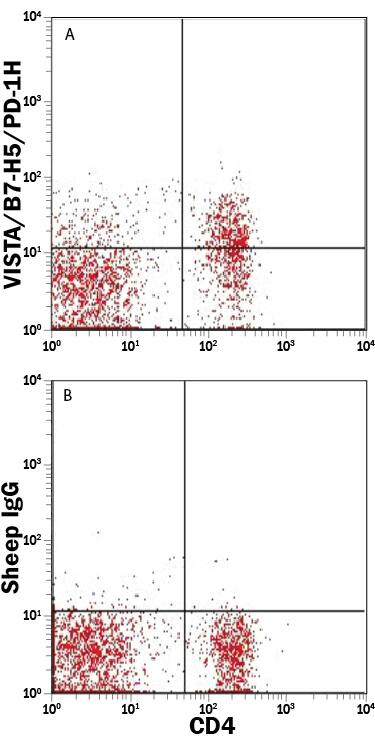

Mouse splenocytes were stained with Rat Anti-Mouse CD4 PE-conjugated Monoclonal Antibody (Catalog # FAB554P) and either (A) Sheep Anti-Mouse VISTA/B7-H5/PD-1H APC-conjugated Antigen Affinity-purified Polyclonal Antibody (Catalog # FAB7005A) or (B) Normal Sheep IgG Allophycocyanin Control (Catalog # IC016A). View our protocol for Staining Membrane-associated Proteins.

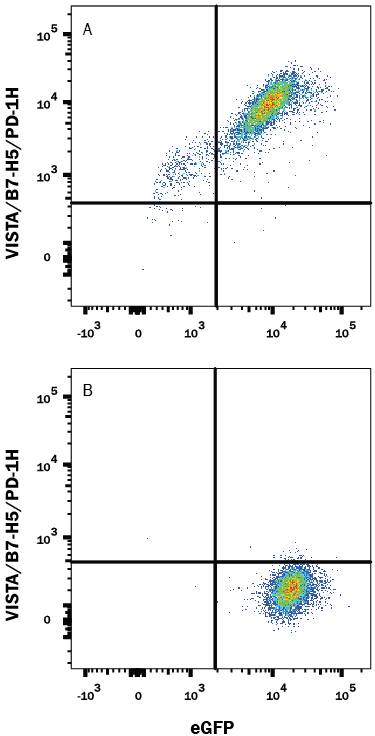

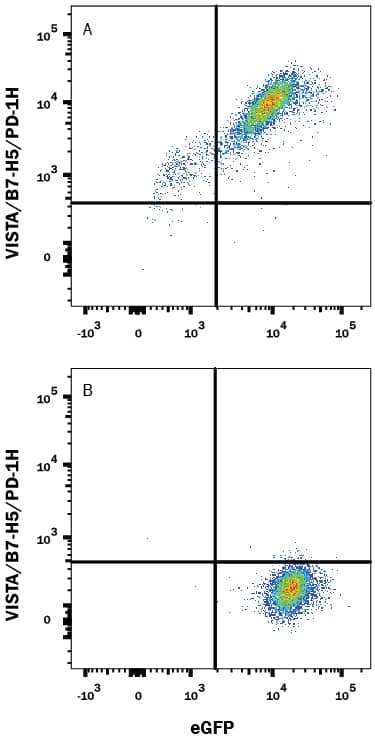

HEK293 human embryonic kidney cell line transfected with either (A) mouse VISTA or (B) irrelevant transfectants and eGFP was stained with Sheep Anti-Mouse VISTA/B7-H5/PD-1H APC-conjugated Antigen Affinity-purified Polyclonal Antibody (Catalog # FAB7005A). Quadrant markers were set based on control antibody staining (Catalog # IC016A). View our protocol for Staining Membrane-associated Proteins.

• Reactivity: Mu
• Applications: Flow
• Clonality: Polyclonal
• Host: Sheep
• Conjugate: Allophycocyanin

VISTA/B7-H5/PD-1H Antibody [Allophycocyanin] Summary

• Immunogen: Mouse myeloma cell line NS0-derived recombinant mouse VISTA/B7-H5/PD-1H
  Phe33-Ala191
  Accession # Q9D659
• Specificity: Detects mouse VISTA/B7-H5/PD-1H in direct ELISAs and Western blots. In direct ELISAs, approximately 25% cross-reactivity with recombinant human VISTA/B7-H5/PD-1H is observed.
• Source: N/A
• Isotype: IgG
• Clonality: Polyclonal
• Host: Sheep
• Gene: Vsir
• Purity Statement: Antigen Affinity-purified

Applications/Dilutions

• Dilutions:
  • Flow Cytometry 10 uL/10^6 cells

Packaging, Storage & Formulations

• Storage: Store the unopened product at 2 - 8° C. Do not use past expiration date. Protect from light.
• Buffer: Supplied in a saline solution containing BSA and Sodium Azide.
• Preservative: Sodium Azide

Notes

This product is produced by and ships from R&D Systems, Inc., a Bio-Techne brand.

Alternate Names for VISTA/B7-H5/PD-1H Antibody [Allophycocyanin]

• 4632428N05Rik
• B7H5
• B7-H5
• C10orf54
• chromosome 10 open reading frame 54
• Dies1
• Gi24
• PD1H
• PD-1H
• platelet receptor Gi24
• PP2135
• SISP1
• stress induced secreted protein 1
• VISTA
• VSIR

Background

VISTA, also known as B7-H5, PD-1H, Platelet Receptor Gi24, Dies1 (Differentiation of ESC-1), SISP1 and C10orf54, is a 55-65 kDa member of the Ig superfamily. It is a transmembrane molecule expressed in bone, on embryonic stem cells (ESCs), and on tumor cell surfaces. On ESCs, VISTA appears to positively interact with BMP4, potentiating BMP signaling and the transition from an undifferentiated to a differentiated state. On tumor cells, VISTA both promotes MT1-MMP expression and activity, and serves as a substrate for MT1-MMP. This increases the potential for cell motility. Mature mouse VISTA is a 277 amino acid (aa) type I transmembrane glycoprotein (aa 33-309). It contains a 149 aa extracellular region (aa 33-191) with one V-type Ig-like domain (aa 33-161) and a 97 aa cytoplasmic domain. Based on human VISTA, mouse Gi24 will likely undergo proteolytic cleavage by MT1-MMP, generating a soluble 30 kDa extracellular fragment, plus a 25-30 kDa membrane-bound fragment. There are two potential isoform variants. One contains a deletion of aa 127-187, while another shows an alternative start site at Met82. Over aa 33-191, mouse VISTA/Dies1 shares 78% and 70% aa sequence identity with rat and human VISTA, respectively.

Limitations

This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.

Bioinformatics

• Gene Symbol: Vsir
• Uniprot:
  • Q9D659(Mouse)
