ARF1 Antibody (1D9)

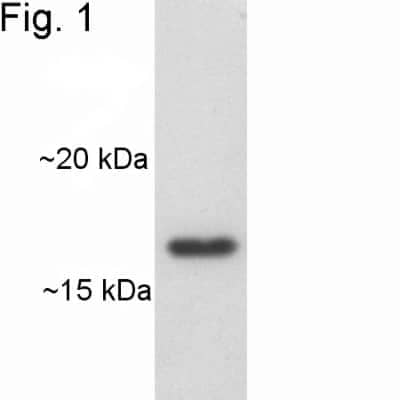

Western Blot: ARF1 Antibody (1D9) [NB300-505] - Analysis of canine heart extract.

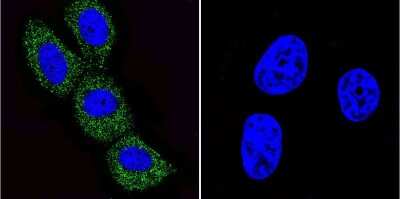

Immunocytochemistry/ Immunofluorescence: ARF1 Antibody (1D9) [NB300-505] - Analysis of ADP-Ribosylation Factor (green), F-Actin staining with Phalloidin (red) and nuclei with DAPI (blue) is shown.

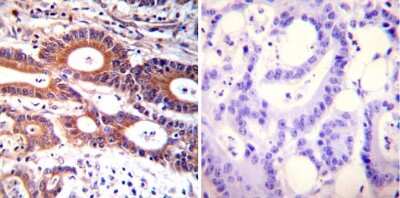

Immunohistochemistry-Paraffin: ARF1 Antibody (1D9) [NB300-505] - Both normal and cancer biopsies of deparaffinized Human colon carcinoma tissues.

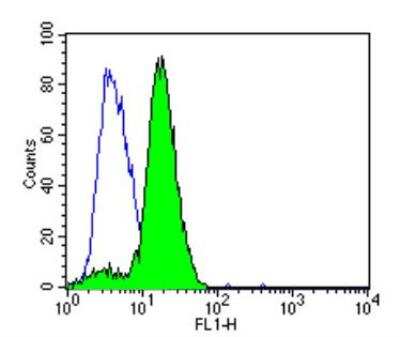

Flow Cytometry: ARF1 Antibody (1D9) [NB300-505] - Analysis of MCF-7 cells compared to an isotype control (blue).

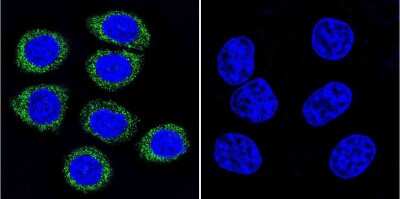

Immunocytochemistry/ Immunofluorescence: ARF1 Antibody (1D9) [NB300-505] - ADP-Ribosylation Factor (green), F-Actin staining with Phalloidin (red) and nuclei with DAPI (blue) is shown.

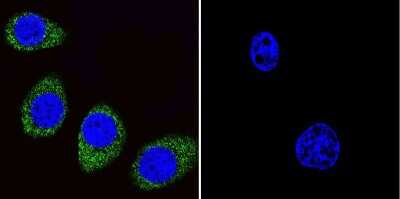

Immunocytochemistry/ Immunofluorescence: ARF1 Antibody (1D9) [NB300-505] - Analysis of ADP-Ribosylation Factor (green), F-Actin staining with Phalloidin (red) and nuclei with DAPI (blue) is shown.

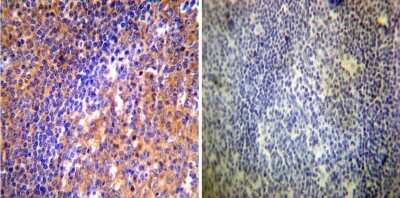

Immunohistochemistry-Paraffin: ARF1 Antibody (1D9) [NB300-505] - Both normal and cancer biopsies of deparaffinized Human tonsil tissues.

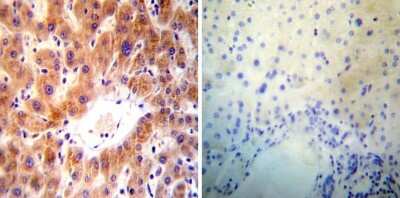

Immunohistochemistry-Paraffin: ARF1 Antibody (1D9) [NB300-505] - Both normal and cancer biopsies of deparaffinized Human liver tissues.

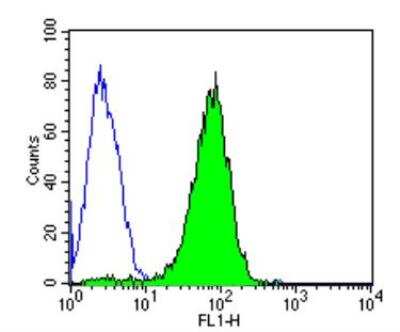

Flow Cytometry: ARF1 Antibody (1D9) [NB300-505] - Analysis of 3T3 cells compared to an isotype control (blue).

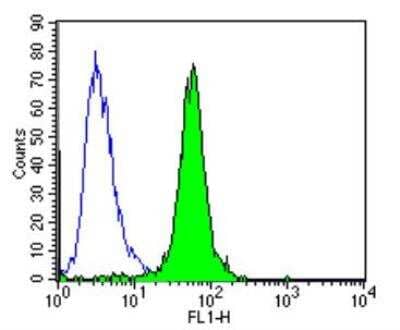

Flow Cytometry: ARF1 Antibody (1D9) [NB300-505] - Analysis of Hela cells compared to an isotype control (blue).

Product Details

Product Discontinued
View other related ARF1 Primary Antibodies

Order Details

    • Catalog Number
    • Availability
      Product Discontinued

    Can't find what you are looking for? Use our Antibody Concierge Service & we will help you locate your antibody!

    Or feel free to contact us for alternative products.

ARF1 Antibody (1D9) Summary

Recombinant human ARF1.
Golgi Apparatus
Detects ADP-ribosylation factor1 (Arf 1), Arf 3, Arf 5 and Arf 6 and at about a ten-fold reduction with Arf 4.
Innovator's Reward
Test in a species/application not listed above to receive a full credit towards a future purchase.


  • ELISA 1:100 - 1:2000
  • Flow Cytometry 1:20
  • Immunocytochemistry/ Immunofluorescence 1:500
  • Immunohistochemistry 1:100
  • Immunohistochemistry-Paraffin 1:100
  • Immunoprecipitation 1:10 - 1:500
  • Western Blot 1:500
Application Notes
ELISA usage was reported in scientific literature. WB: Detects an approx. 21 kDa protein representing Arf in rat pancreas extract. IF: Staining of Arf in rat pancreas results in staining of the cytoplasmic face of the trans-Golgi membranes.This antibody cannot be used to neutralize Arf in solution.
ARF1 Overexpression Lysate
Read Publications using
NB300-505 in the following applications:

Reactivity Notes

Bovine reactivity reported in scientific literature (PMID: 10747089). Please note that this antibody is reactive to Mouse and derived from the same host, Mouse. Additional Mouse on Mouse blocking steps may be required for IHC and ICC experiments. Please contact Technical Support for more information.

Packaging, Storage & Formulations

Store at -20C. Avoid freeze-thaw cycles.
0.05% Sodium Azide

Alternate Names for ARF1 Antibody (1D9)

  • ADP-ribosylation factor 1
  • ARF1


The ADP-ribosylation factor (Arf) family comprises a group of structurally and functionally conserved 21 kDa proteins, which are members of the Ras superfamily of regulatory GTP-binding proteins. Arf is involved in intracellular protein traffic to and within the Golgi complex. Arf has a number of disparate activities including maintenance of organelle integrity, assembly of coat proteins, as a co-factor for cholera toxin and as an activator of phospholipase D. The Arf family is divided functionally into the Arf and the Arf-like (Arl) proteins. Arfs share more than 60% sequence identity, appear to be ubiquitous in eukaryotes, and are highly conserved evolutionarily.


This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.

Publications for ARF1 Antibody (NB300-505)(14)

We have publications tested in 1 confirmed species: Human.

We have publications tested in 5 applications: ELISA, ICC/IF, IF/IHC, IP, WB.

Filter By Application
All Applications
Filter By Species
All Species
Showing Publications 1 - 10 of 14. Show All 14 Publications.
Publications using NB300-505 Applications Species
Jia J, Tang S, Yue X et al. An A-Kinase Anchoring Protein (ACBD3) Coordinates Traffic-Induced PKA Activation At The Golgi The Journal of biological chemistry 2023-04-10 [PMID: 37044218] (WB, Human) WB Human
Wei M, Zhu Z, Wu J et al. DRAM1 deficiency affects the organization and function of the Golgi apparatus Cell. Signal. 2019-07-26 [PMID: 31356858] (WB, Human) WB Human
Nawrotek A, Benabdi S et al. PH-domain-binding inhibitors of nucleotide exchange factor BRAG2 disrupt Arf GTPase signaling. Nat Chem Biol 2019-01-04 [PMID: 30742123] (ICC/IF, Human) ICC/IF Human
Ramirez-Peinado S, Ignashkova TI, van Raam BJ et al. TRAPPC13 modulates autophagy and the response to Golgi stress. J. Cell. Sci. 2017-05-23 [PMID: 28536105]
Reiling JH, Olive AJ, Sanyal S et al. A CREB3-ARF4 signalling pathway mediates the response to Golgi stress and susceptibility to pathogens. Nat Cell Biol. 2013-12-01 [PMID: 24185178] (WB, Human) WB Human
Wang J, Sun HQ, Macia E, Kirchhausen T, Watson H, Bonifacino JS, Yin HL. PI4P promotes the recruitment of the GGA adaptor proteins to the trans-Golgi network and regulates their recognition of the ubiquitin sorting signal. Mol Biol Cell;18(7):2646-55. 2007-07-01 [PMID: 17494868] (ICC/IF) ICC/IF
Shen X, Xu KF, Fan Q, Pacheco-Rodriguez G, Moss J, Vaughan M. Association of brefeldin A-inhibited guanine nucleotide-exchange protein 2 (BIG2) with recycling endosomes during transferrin uptake. Proc Natl Acad Sci U S A;103(8):2635-40. 2006-02-21 [PMID: 16477018] (ELISA) ELISA
Belov GA, Fogg MH, Ehrenfeld E. Poliovirus proteins induce membrane association of GTPase ADP-ribosylation factor. J Virol;79(11):7207-16. 2005-06-01 [PMID: 15890959] (WB) WB
Chan D, Strang M, Judson B, Brown WJ. Inhibition of membrane tubule formation and trafficking by isotetrandrine, an antagonist of G-protein-regulated phospholipase A2 enzymes. Mol Biol Cell. 15(4):1871-80. 2004-04-01 [PMID: 14767064] (ICC/IF) ICC/IF
Spitzenberger F, Pietropaolo S, Verkade P, Habermann B, Lacas-Gervais S, Mziaut H, Pietropaolo M, Solimena M. Islet cell autoantigen of 69 kDa is an arfaptin-related protein associated with the Golgi complex of insulinoma INS-1 cells. J Biol Chem;278(28):26166-73. 2003-07-11 [PMID: 12682071] (IP) IP
