Recombinant Human VISTA Fc Chimera Biotinylated Protein, CF

Images

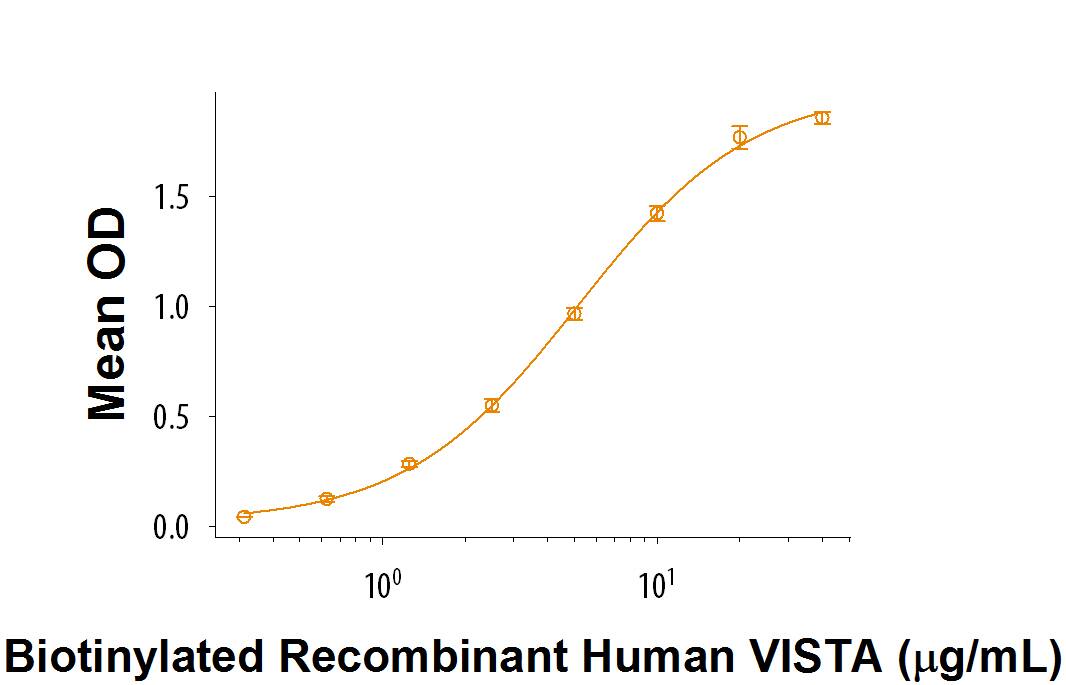

When Recombinant Human VSIG3 Fc Chimera (Catalog # 9229‑VS) is coated at 5 μg/mL, Biotinylated Recombinant HumanVISTA/B7‑H5 Fc Chimera (Catalog # BT7126) binds with an ED50 of 1‑6 μg/mL.

Product Details

Summary
Reactivity HuSpecies Glossary
Applications Bioactivity
Format
Carrier-Free

Order Details

Recombinant Human VISTA Fc Chimera Biotinylated Protein, CF Summary

Details of Functionality
Measured by its binding ability in a functional ELISA. When Recombinant Human VSIG-3 Fc Chimera (Catalog # 9229-VS) is immobilized at 5 μg/mL, 100 μL/well, the concentration of Biotinylated Recombinant VISTA/B7-H5/PD-1H Fc Chimera that produces 50% of the optimal binding response is 1-6 μg/m Measured by its ability to inhibit anti-CD3 antibody induced IL-2 secretion in human T lymphocytes. The ED50 for this effect is typically 1-6 μg/m
Source
Mouse myeloma cell line, NS0-derived human VISTA/B7-H5/PD-1H protein
Human VISTA/B7-H5/PD-1H
(Phe33-Ala194)
Accession # AAH20568
IEGRMD Human IgG1
(Pro100-Lys330)
N-terminus
Accession #
N-terminal Sequence
Phe33
Structure / Form
Disufide-linked homodimer. Biotinylated via amines
Protein/Peptide Type
Recombinant Proteins
Purity
>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.
Endotoxin Note
<0.10 EU per 1 μg of the protein by the LAL method.

Applications/Dilutions

Theoretical MW
45 kDa (unlabeled).
Disclaimer note: The observed molecular weight of the protein may vary from the listed predicted molecular weight due to post translational modifications, post translation cleavages, relative charges, and other experimental factors.
SDS-PAGE
64 - 75 kDa, reducing conditions

Packaging, Storage & Formulations

Storage
Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 3 months, -20 to -70 °C under sterile conditions after reconstitution.
Buffer
Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose.
Purity
>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.
Reconstitution Instructions
Reconstitute at 500 μg/mL in PBS.

Notes

This product is produced by and ships from R&D Systems, Inc., a Bio-Techne brand.

Alternate Names for Recombinant Human VISTA Fc Chimera Biotinylated Protein, CF

  • 4632428N05Rik
  • B7H5
  • B7-H5
  • C10orf54
  • chromosome 10 open reading frame 54
  • Dies1
  • Gi24
  • PD1H
  • PD-1H
  • platelet receptor Gi24
  • PP2135
  • SISP1
  • stress induced secreted protein 1
  • VISTA
  • VSIR

Background

Platelet receptor Gi24, also known as Dies1, VISTA, SISP1 and B7‑H5, is a 55‑65 kDa transmembrane glycoprotein with homology to B7‑like immune co‑stimulatory molecules (1, 2). Mature human Gi24 contains a 162 amino acid (aa) extracellular domain (ECD) with one V‑type Ig‑like domain, a 21 aa transmembrane segment, and a 96 aa cytoplasmic domain. Within the ECD, human Gi24 shares 70% and 67% aa sequence identity with mouse and rat Gi24, respectively (3). The 30 kDa ECD can be shed by MT1‑MMP, with a 25‑30 kDa fragment remaining in the membrane (3). Gi24 promotes both MT1‑MMP expression and the MT1‑MMP mediated activation of MMP‑2 (3). Gi24 supports the differentiation of embryonic stem cells (ESC) and enhances BMP‑4 induced signaling in ESC, but is also down‑regulated following BMP‑4 exposure (4, 5). It binds to BMP‑4 directly, and also associates with the type I BMP receptor Activin RIB/ALK‑4 (4, 5). Gi24 is expressed on the surface of naïve CD4+ T cells and regulatory T cells (6). It is up‑regulated in vivo on activated monocytes and dendritic cells (5). Gi24 inhibits CD4+ and CD8+ T cell proliferation, and their production of IL‑2 and IFN‑ gamma (6). Its expression on tumor cells attenuates the anti‑tumor immune response and enables more rapid tumor progression (6). In contrast, Gi24 limits disease progression in the autoimmune disease model EAE (6).
  1. Flajnik, M.F. et al. (2012) Immunogenetics 64:571.
  2. Wilcox, R.A. et al. (2012) Eur. J. Haematol. 88:465.
  3. Sakr, M.A. et al. (2010) Cancer Sci. 101:2368.
  4. Aloia, L. et al. (2010) J. Biol. Chem. 285:7776.
  5. Parisi, S. et al. (2012) FASEB J. 26:3957.
  6. Wang, L. et al. (2011) J. Exp. Med. 208:577.
