Immunocytochemistry/ Immunofluorescence: Tat-Beclin 1 D11 Autophagy Inducing Peptide [NBP2-49888] - HeLa GFP-LC3B cells were treated with Tat-D11, Tat-L11, Tat-Beclin 1 or Tat-L11S for 1.5 hours. Thereafter, the cells ...read more
In vitro assay: Tat-Beclin 1 D11 Autophagy Inducing Peptide - Retroinverso form [NBP2-49888] - Analysis of lysates from HeLa cells that were left untreated (blank) or were treated with 10-20 uM each of Tat-D11, Tat-L11, ...read more
In vivo assay: Tat-Beclin 1 D11 Autophagy Inducing Peptide - Retroinverso form [NBP2-49888] - In vivo dose study in 10wk old C57BL/6J mice. Either 1mg/kg or 10mg/kg IP once daily was administered for 2 days, mice were ...read more
Tat-Beclin 1 D11 Autophagy Inducing Peptide - Retroinverso form Summary
Tat-D11 [NBP2-49888]: peptides comprising 11 amino acids derived from Beclin 1 linked to the HIV Tat protein with a diglycine linker. These peptides are in the retero-inverso D-configuration. The amino acid sequence of Tat-Beclin 1 D11 is RRRQRRKKRGYGGDHWIHFTANWV (Bio-Techne's exclusive patent license: US Patent 8,802,633).
Cell-penetrating autophagy inducing peptides engineered in 2013 were demonstrated to induce autophagy through interaction with the autophagy suppressor GAPR-1/GLIPR2 (Nature, 2013; PMID 23364696). These Tat-Beclin 1 peptides were comprised of AA 267-284 of the autophagy inducer Beclin 1 (18 amino acids), a diglycine linker, and 11 amino acids of the HIV Tat protein transduction domain. Tat-B...eclin 1 peptides were re-engineered to remove 7 AA from the beclin 1 domain. These shorter peptides, Tat-D11 [NBP2-49888] and Tat-L11 [NBP2-49886], demonstrate enhanced autophagy inducing function over the original Tat-Beclin 1 peptides and the scrambled control peptide Tat-L11S [NBP2-49887]. Tat-D11 and Tat-L11 are potent autophagy inducers which function both in vitro and in vivo to specifically induce autophagy. Tat-D11 and Tat-L11 peptides are comprised of 11 amino acids of the autophagy-inducing region of beclin 1 fused to the HIV Tat protein. Both Tat-D11 and Tat-L11 peptides function by binding the negative regulator of autophagy GAPR-1/GLIPR2. Upon peptide binding, beclin 1 bound to GARP-1 is released, resulting in beclin 1 mediated autophagosome formation and autophagy induction. Data indicate Tat-D11 is more potent than both Tat-L11 and Tat-Beclin 1 in vivo. In addition, initial data derived from HeLa cells also suggests Tat-D11 is more potent than Tat-L11 in vitro. However, ongoing experiments indicate Tat-L11 may be more potent than Tat-D11 in select cell lines.
Autophagy Inducing Peptide
In vitro assay
In vivo assay
3.08 kDa. Disclaimer note: The observed molecular weight of the protein may vary from the listed predicted molecular weight due to post translational modifications, post translation cleavages, relative charges, and other experimental factors.
Read 1 Review rated 5 using NBP2-49888 in the following applications:
In vivo treatment, then immunoblot analysis on kidneys
Increased basal expression of LC3-II on immunoblot as expected in the kidneys at a dose of 1mg/kg.Soluble in PBS.

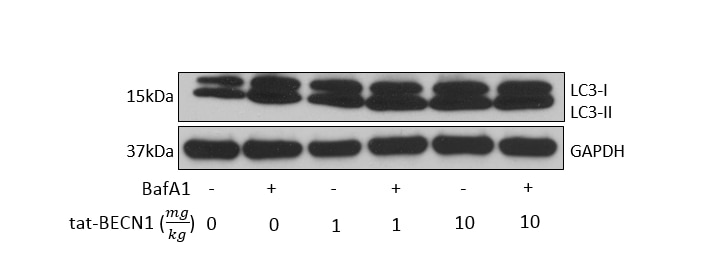

I used this peptide for an in vivo dose study in 10wk old C57BL/6J mice. I administered either 1mg/kg or 10mg/kg IP once daily for 2 days, sacrificed the mice, and prepared the kidneys for western blot analysis (image shown). Additionally, the lysosomal inhibitor bafilomycin A1 was used to provide a measurement of autophagic flux. *vehicle is scrambled tat-beclin (NBP2-49887-5mg)
Product General Protocols
View specific protocols for Tat-Beclin 1 Autophagy Inducing Peptide (NBP2-49888):
The concentration calculator allows you to quickly calculate the volume, mass or concentration of your vial. Simply enter your mass, volume, or concentration values for your reagent and the calculator will determine the rest.
